Character Displays

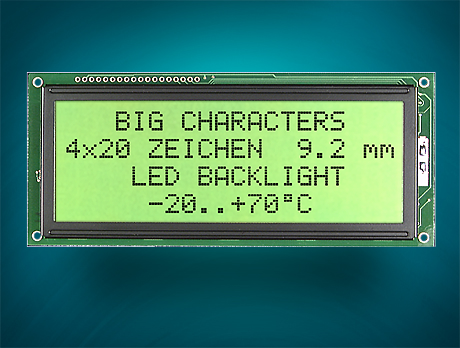

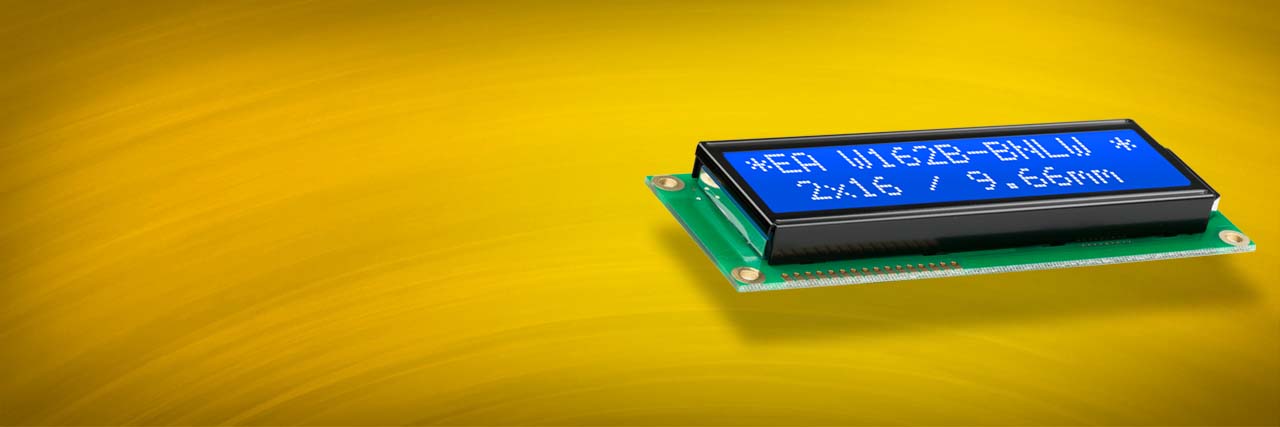

The dotmatrix LCDs offered here are equipped with the controller HD44780 or compatible; they provide a complete character set and are configured for operation on the 4- or 8-bit data bus of a processor system. There are R/W, RS and Enable control lines. Please ask about special models with an extended temperature range, a Cyrillic character set or a soldered connector. Semi-customized solutions are possible as of 50 units. The accessories we supply for dotmatrix LCDs include suitable bezels and RS-232 interfaces.
We have a large stock and can thus deliver many models immediately from our stock in Gilching near Munich.
As a special we do have displays with I2C bus and SPI interface also.

The following display sizes (lines x characters) are available as standard modules (further information in tabular form):
 [ 1x8 | 1x16 | 1x20 | 2x8 | 2x12 | 2x16 | 2x20 | 2x24 | 2x40 | 4x12 | 4x16 | 4x20 | 4x40 ]

DOG-Series

Do you already know our DOG-Series?
super flat and
perfect for 3.3V
low-power
also with serial I²C or SPI interface
Chip-on-glass technology
1x8, 2x16, 3x16, 4x10, 4x16, 4x20
also as graphic displays

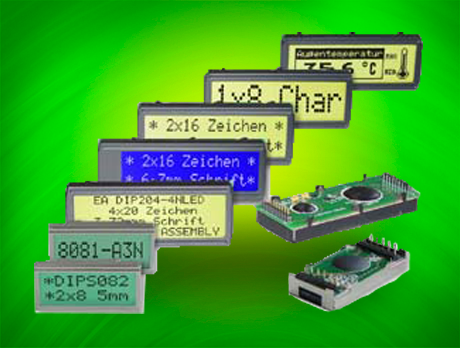

DIP Modules

Dotmatrix: Outline Dimensions 68(75)x27x11 mm

effective viewing area / no pcb border
outline dimensions 68(75)x27x11 mm
no more mounting holes
simply solder into motherboard
with LED backlight
competitive in price and availability
incl. standard controller
4x pin. compatible:

1x8 / 11.48 mm Data Sheet EA DIP081 (yellow/green)
2x16 / 6.68 mm Data Sheet EA DIP162 (yellow/green, blue and black/white)
4x20 / 3.73 mm Data Sheet EA DIP203 (yellow/green, blue and black/white)
122x32 / Graphics Data Sheet EA DIP122 (yellow/green, blue)

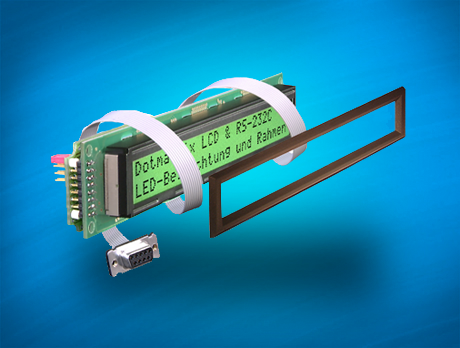

The series with RS-232 / RS-422

Fixed-text displays for 64 messages

The series we are talking about here is an LCD dotmatrix series complete with a control interface and bezel. The LCD module, which includes an RS-232 interface, is delivered as a unit. It is connected to a standard RS-232C interface (or, alternatively, an RS-422).
You will find more information on this on the rs232 page.

Accessories

Bezels
All bezels are available with an anti-glare screen. The bezels are simply inserted into the frontal cutout. This gives your unit a professional look, and at the same time the anti-glare screen prevents the integrated display from being touched or getting dirty. The anti-glare screen makes the display considerably easier to read. Please refer to the tables for dotmatrix modules for the order numbers of the various bezels. You will find more information on bezels in our data sheet, which is available in PDF format, or on our accessories page.
Inverters for CFL- and EL-foil illumination
In contrast to LED illumination, CFL and EL illumination requires a series-connected electronic circuit. This electronic circuit, which is known as an CFL inverter and EL inverter, generates alternating voltage of some hundreds Volt from +5V DC. These inverters have 3-5 pins that are soldered into a printed circuit board. The type required depends on the illumination surface. You will find more information on our accessories page, our news page or in our data sheet, which is available in PDF format.
Cables and connectros
We accept orders of one or more units of the following items for your display: one- or two-row connectors and cables with a grid of 1.27 or 2.54 mm with a female connector (one- or two-row) crimped on, with different numbers of pins and a wide range of lengths.
