High contrast from all sides

Conventional LCD displays are very angle dependent. If they are tilted to the side, contrast is reduced and the colours distort. This isn’t the case with the IPS panels from DISPLAY VISIONS GmbH, though. With this new technology, the colours are preserved and the contrasts remain sharp, even when viewed from the side and at an angle.

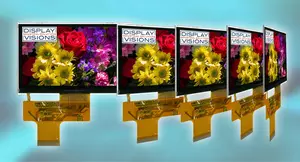

When using mobile devices in particular, the light conditions and viewing angles aren’t always optimal. With its EA TFT series, DISPLAY VISIONS has therefore launched a series of compact mini-graphics displays that offer a high-contrast display from all angles. Due to the special alignment of the liquid crystals, neither the colours nor the contrast shift, even when viewed sideways and at an angle, as is the case with conventional TN panels, for example. And thanks to the 1,000 cd/m² bright backlight, the displays also stay easy to read in direct sunlight. Despite this, the use of highly efficient LEDs means they are also very economical in terms of power consumption. This makes them ideal for use in mobile devices.

DISPLAY VISIONS currently offers its new IPS displays in nine different sizes (0.96” to 10.1”) and with resolutions of 80x160 to 1,280x800 pixels. And even the smallest sizes can be combined with a capacitive touch panel.

The compact displays are easy to operate using an SPI interface. Alternatively, a connection via RGB, 8-bit or 16-bit data bus is also possible. A range of displays is also available as a complete HMI solution with an SPI, RS-232 or USB connection, as well as various inputs and outputs.

Designed for heavy-duty industrial and medical applications, these displays can be operated at a wide range of temperatures from -20°C to +70°C. Their service life is 50,000 hours. All the EA TFT displays are available now and for the long term. And the experts at DISPLAY VISIONS are naturally available to assist their customers in the case of complex applications.

Here you do find more information: IPS-Displays
