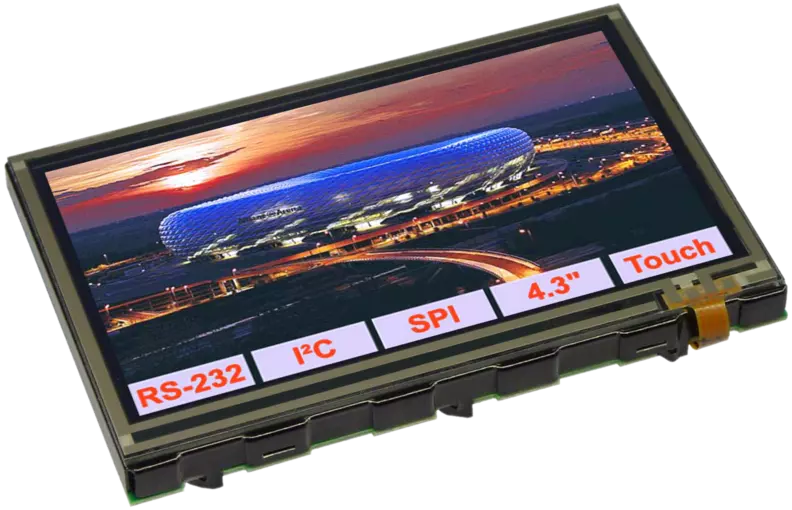

Intelligent TFT displays with touch and RS-232, I2C, SPI
3,2" ~ 7" TFT with Serial Interface SPI/I²C
As the first in the world we do provide TFT displays with 3.2", 4.3" and 7", which are immediately running and do provide from the first minute the full functionality. These displays do require a single supply 5V= (EA eDIPTFT32: 5V= or 3.3V=) and an interface RS-232, I²C or SPI only.
All character sets and control /graphic functions to build-up a screen are immediately available.
- no PC / embedded system necessary
- low power with max. 900mW (except 5.7" and 7": 3.5W)
- no training for a new software and programming tools necessary
- full function already immediately after power-on
- drastically reduced time-to-market
- tested functions validated hundreds of times
- unparalleled flexibility thanks to powerful commands and a variety of interfaces (RS-232, I²C, SPI)
- extremely compact construction
- and not the least important benefit: a clear price advantage compared to individualized solutions

Various character sets built-in

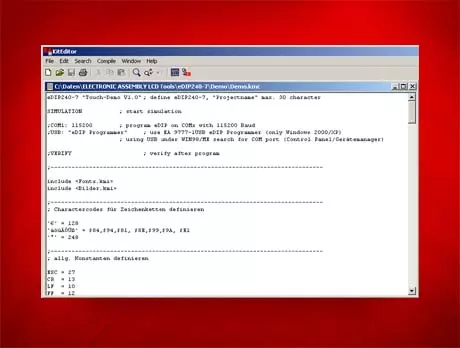

Extensive graphics commands, editor / compiler
Such as touch button, bar graph, areas, images, animations, character string centered... are integrated. An appealing screen layout is created with just a few, easy-to-understand commands. All commands are based on coordinates and can therefore be used and moved with pixel precision. A built-in self-test is integrated for demo purposes and initial tests: simply set the “Test” pin to low An editor / compiler is available free of charge for initial demos. The internal FLASH can be used to create predefined screen layouts, for example. TIFF, JPG, TGA and GIF animations can also be saved here. The software is freely available and can be downloaded here: LCD-Tools for Windows.
![[Translate to Englisch:] Umfangreiche Grafikbefehle, Editor / Compiler [Translate to Englisch:] Umfangreiche Grafikbefehle, Editor / Compiler](/fileadmin/_processed_/8/b/csm_Kiteditor_079028e0e0.webp)
Communication via serial interface (RS-232, I²C, SPI)

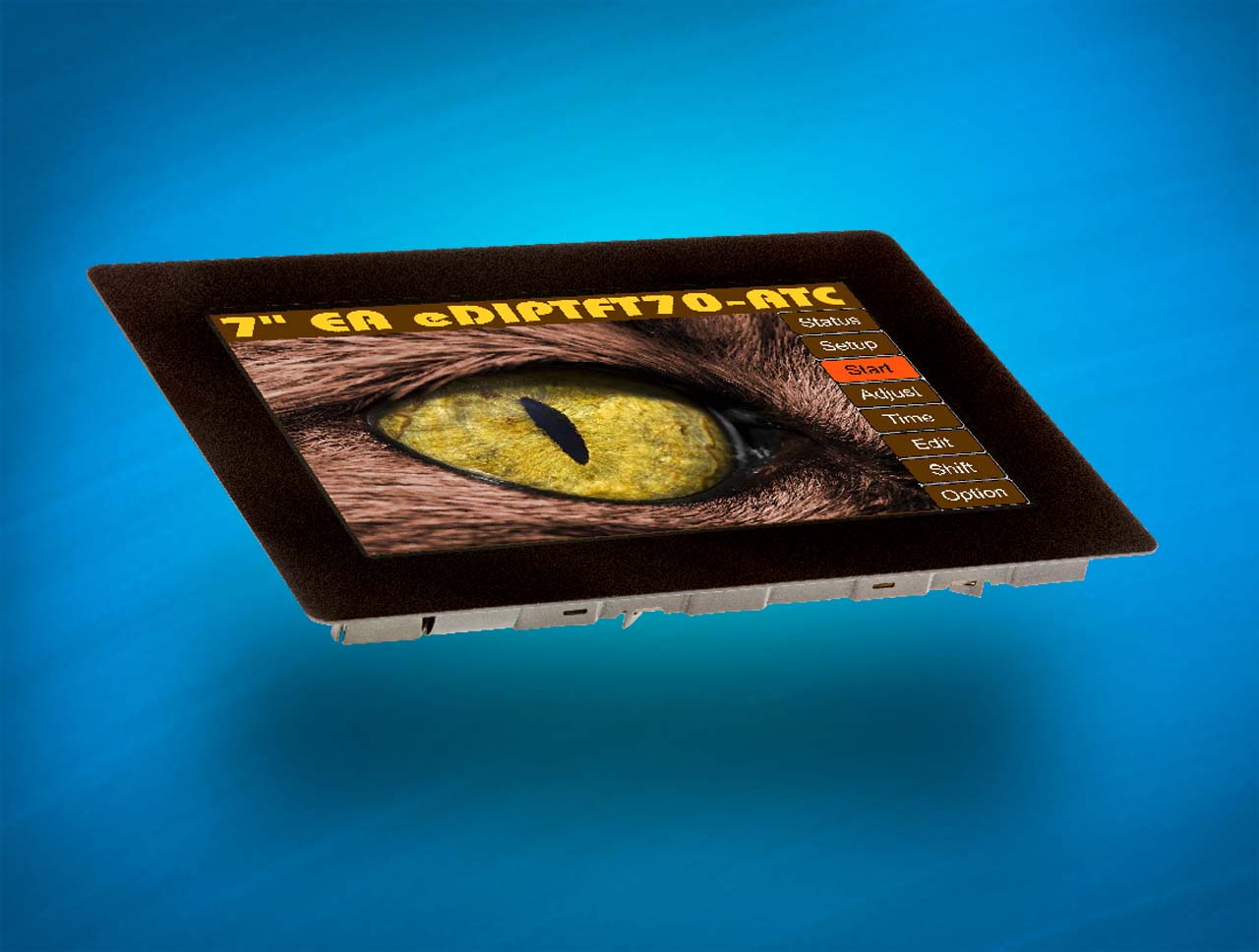

Capacitive Touchpanel - PCAP
Additionally to the well-proved versions with a resistive touch panel currently we do provide 2 displays with 4.3" and 7" alternatively equipped with a capacitive touch panel: EA eDIPTFT43-ATC (4.3") and EA eDIPTFT70-ATC (7").
The advantage is more transperency that leads for both sizes to again more brightness and a very contrasty display. The surface is made of glass which is hard profen against scratch, it is hygienic and resistant against all cleaning stuff. The design with its black frame grants your equipment a valuable, modern optic.
An essential detail with industrial applications ist the usability with and without hand gloves. Even when the display is put behind a 3mm glass plate it may be operated perfectly.

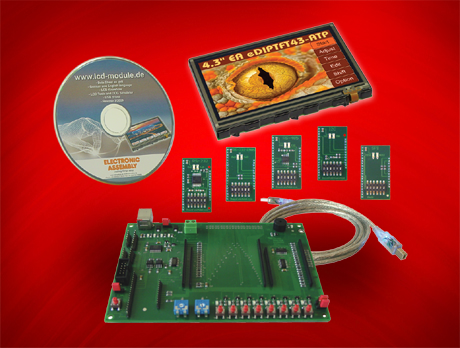

Getting started
- TFT Display with Touch Panel
- USB-Programmerboard or USB-Evalboard
- DVD with driver for Windows, Editor, Compiler and Demos: the ELECTRONIC ASSEMBLY LCD-Tools
- Cable and data sheet
- 5 additional interface boards for RS-232, RS-485, I²C and SPI with the EA EVALeDIPxxx

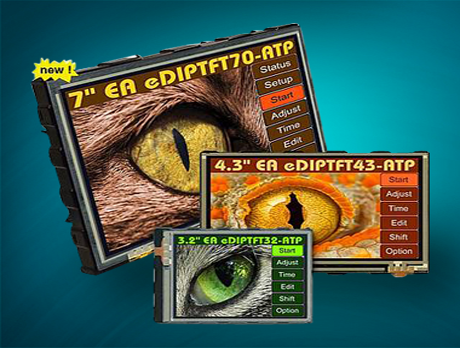

All colored TFT Displays at a glance
Colored TFT Displays | |||||
Ordering Code | Dimension | Touchpanel | Data Sheet Display | Data Sheet Starter package / USB- Evalset | |
EA eDIPTFT32-A | 3.2" | 82x61x12mm | EA EVALeDIP128-240 | ||
EA eDIPTFT32-ATP | Resistive | ||||
EA eDIPTFT43-A | 4.3" | 107x71x12mm | |||
EA eDIPTFT43-ATP | Resistive | ||||
EA eDIPTFT43-ATC | 120x92x12mm | PCAP | |||
EA eDIPTFT57-A | 5.7" | 146x107x13mm | EA EVALeDIP320-TFT70 | ||
EA eDIPTFT57-ATP | Resistive | ||||
EA eDIPTFT70-A | 7" | 170x112x16mm | |||
EA eDIPTFT70-ATP | Resistive | ||||
EA eDIPTFT70-ATC | 193x132x16mm | PCAP |
All monochrome displays at a glance
Monochrome Displays | ||||||
Ordering Code | Dimension | Display Color | Touchpanel | Data Sheet Display | Data Sheet for Starterpackage / USB- Evalset | |
EA eDIP128B-6LW | 2.8" | 72x55x12mm | blue-white | EA EVALeDIP128-240 | ||
EA eDIP128B-6LWTP | resistive | |||||
EA eDIP128W-6LW | black&white | |||||
EA eDIP128W-6LWTP | resistive | |||||
EA eDIP160B-7LW | 3.2" | 82x68x12mm | blue-white | |||
EA eDIP160B-7LWTP | resistive | |||||
EA eDIP160W-7LW | black&white | |||||
EA eDIP160W-7LWTP | resistive | |||||
EA eDIP240B-7LW | 4.2" | 113x70x11mm | blue-white | |||
EA eDIP240B-7LWTP | resistive | |||||
EA eDIP240J-7LW | black&white | |||||
EA eDIP240J-7LWTP | resistive | |||||
EA eDIP240J-7LA | black-amber | |||||
EA eDIP240J-7LATP | resistive | |||||
EA eDIP320B-8LW | 5.7" | 138x105x10mm | blue-white | EA STARTeDIP320 | ||
EA eDIP320B-8LWTP | resistive | |||||
EA eDIP320J-8LW | black&white | |||||
EA eDIP320J-8LWTP | resistive | |||||
EA eDIP320J-8LA | black-amber | |||||
EA eDIP320J-8LATP | resistive |
