USB Data Logger - Temperature, Humidity, Voltage, Current, Carbonmonoxide

DISPLAY VISIONS provides the data logger EA SYLOG-USB-2 to monitor and record ambient temperature, relative humidity and dew point. It is ideal for applications in the pharmaceutical and food industry, transportation and logistics and general laboratory use. The device can simply be inserted into a PC USB port for fast, uncomplicated analysis of the data which has been logged. Drivers for current versions of Windows are provided.

Here you do find a flyer as a pdf file.

More than 32.000 Readings

The EA SYLOG-USB-2 captures temperature and relative humidity data simultaneously and can store up to 16,382 readings. It also calculates the dew point for each reading. The data logging intervals can be in the range between 10 seconds and 12 hours and are user selectable. The date and time when logging shall start can also be pre-programmed also. The built-in battery supplies enough energy for more than 1 year.

Data Display and Export

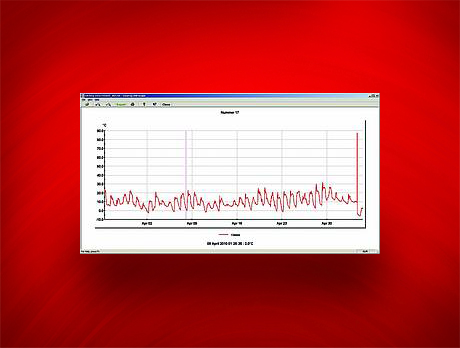

Software is supplied for displaying the results on the computer screen in graphics format. The graphs can also be formatted for printing. The data can be converted into a variety of standard formats and exported for further processing.

Here's a link for a free download: ELWin V7.5.

Lithium Power

The data logger has a wide operating temperature range of -35°C to +80°C which is equivalent to -31°F - +176°F when the data logger is set to the Fahrenheit scale. The device also records the relative humidity between 0% and 100% and calculates the dew point. The data loggers come with a long-life, replaceable lithium battery which normally lasts more than 1 year before needing replacement. A plastic cap provides IP67 protection, keeping out water and dust even during operation.

Temperature

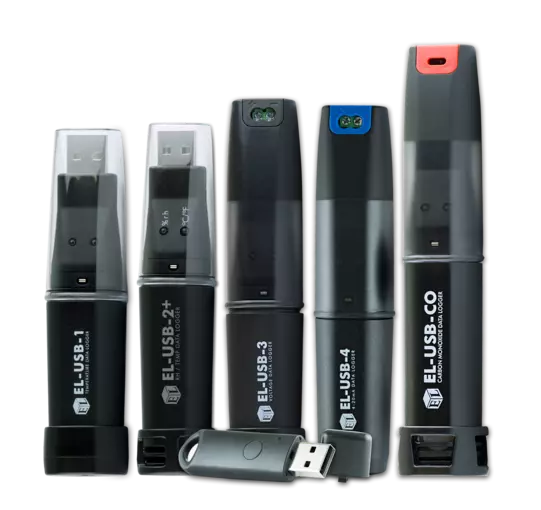

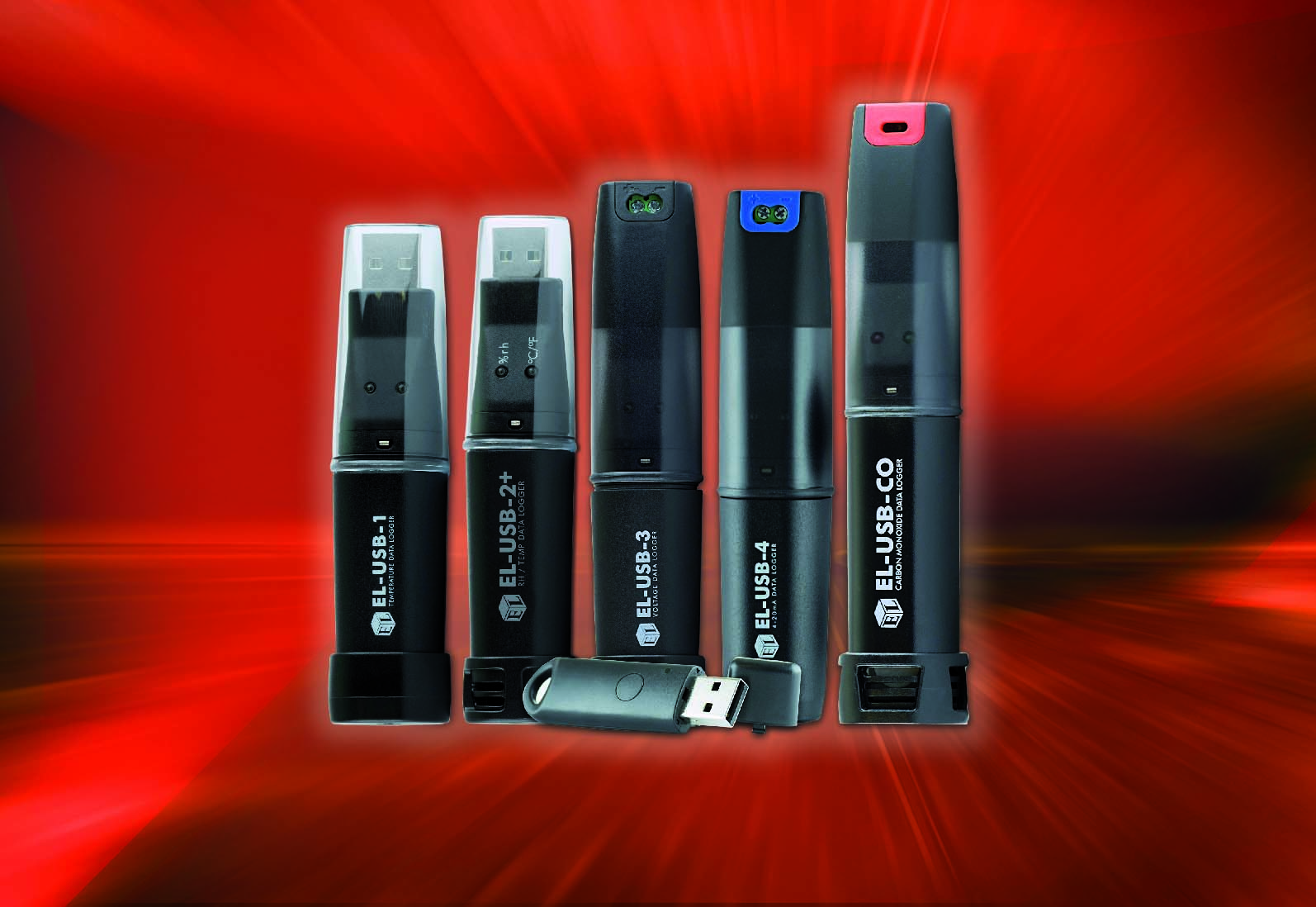

Product	Description	Temperature Range	Humidity	Readings
EA SYLOG-USBLT	Low Cost USB Temperature Data Logger, 2 free definable alarm levels	-10 ... +50°C	--	4,080
EA SYLOG-USB-1	USB Temperature Data Logger, IP67 protection, 2 free definable alarm levels	-35 ... +80°C	--	up to 16,382

Humidity & Temperature

Product	Description	Temperature Range	Humidity	Readings
EA SYLOG-USB-2	Humidity & Temperature USB Data Logger, IP67 protection, free definable alarm levels for humidity and temperature	-35 ... +80°C	0 ... 100% RH	up to 2x 16,382
EA SYLOG-USB-2+	Humidity & Temperature USB Data Logger with enhanced accuracy, IP67 protection, free definable alarm levels for humidity and temperature	-35 ... +80°C	0 ... 100% RH	up to 2x 16,382
EA SYLOG-U-2LCD	Humidity & Temperature USB Data Logger with LC display and IP67 protection, free definable alarm levels for humidity and temperature	-35 ... +80°C	0 ... 100% RH	up to 2x 16,382

Thermocouple

Product	Description	Temperature	Readings
EA SYLOG-USB-TC	USB Temperature Data Logger with K-Type Thermocouple Probe, Compatible with K, J & T-Type Thermocouples	-200 ... +1350°C K-Type -200 ... +1190°C J-Type -200 ... +390°C T-Type	up to 32,512
EA SYLOG-USB-TC-LCD	USB Temperature Data Logger with K-Type Thermocouple Probe, Compatible with K, J & T-Type Thermocouples, with LC display		up to 32,512

Voltage

Product	Description	Input Voltage		Readings

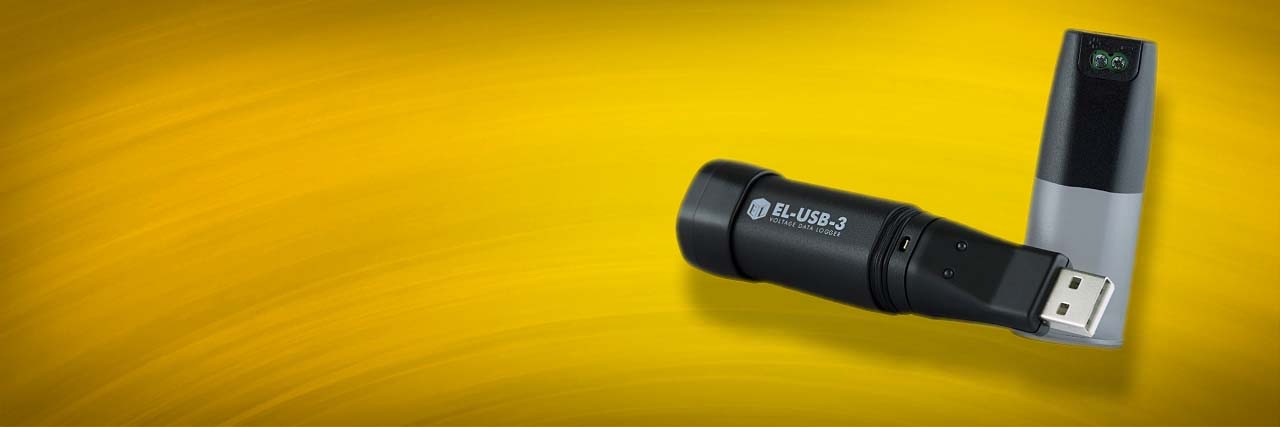

EA SYLOG-USB-3	Voltage USB Data Logger	0-30V d.c.		up to 32,510

Event, State Change & Counter

Product	Description	Input Voltage		Readings
EA SYLOG-USB-5	Event, State Change & Counter USB Data Logger	3..28V d.c.		up to 32,510

4-20mA

Product	Description	Range		Readings
EA SYLOG-USB-4	4-20mA Current Loop, USB Data Logger	4 - 20mA d.c.		up to 32,510

Carbon Monoxide

Product	Description	Range		Readings
EA SYLOG-USB-CO	Carbon Monoxide (CO) Data Logger with USB interface	0 ... 1000 ppm		up to 32,510

WiFi / WLAN Data Logger - Temperature, Humidity

[Translate to Englisch:] WLAN/WiFi Datenlogger - Temperatur, Feuchte

Measure temperature and humidity on site and monitor and evaluate them via WLAN / WiFi 802.11b from anywhere in the world. The measuring range extends from -20°C up to +60°C. The large 15mm display is still easily readable from a distance of >5m. Also a display in °F (-4°F .. +140°F) is possible.

The loggers work self-sufficiently and are extremely easy to install - a wall mount is included. The built-in Li-Ion battery is charged via a USB plug and keeps the logger in operation for up to 1 year. The devices save all data independently. Thus, even if the WLAN network is interrupted, no data is lost. Even if the battery is empty, all data is retained.

The EA WLAN-TC version is equipped with an external K-type thermocouple sensor (0..+400°C) and generally allows temperature measurements from -270°C up to +1300°C.

Unlimited use including WPA/WPA2 encryption

In the truest sense of the word: across all borders, you monitor your measuring points via cloud or local WiFi. Data transmission in the network is adjustable and takes place via WEP or preferably with WPA/WPA2 encryption.

In addition, an upper and a lower alarm limit can be programmed for on-site monitoring. Exceeding or falling below these limits triggers an alarm in the display and is also transmitted via the WiFi network. There, for example, at another location EA WLAN-ALARM sounds an alarm acoustically and visually recognizable from afar. The alarm message is of course also documented and can be viewed on the PC.

The individual loggers at a glance

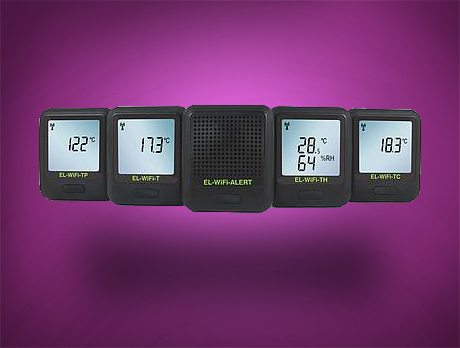

Product	Description	Temperature	Humidity	Accuracy
EA WLAN-T	WiFi data logger for temperature, 2 freely definable alarm thresholds	-20 ... +60°C	--	±0,5 °C
EA WLAN-T+	WiFi data logger for temperature, 2 freely definable alarm thresholds, increased accuracy	-20 ... +60°C	--	±0,15 °C
EA WLAN-TH	WiFi data logger for temperature and humidity, 2 freely definable alarm thresholds each	-20 ... +60°C	0 ... 100% RH	±0,3 °C ±2% RH
EA WLAN-TH+	WiFi data logger for temperature and humidity, 2 freely definable alarm thresholds each, increased accuracy	-20 ... +60°C	0 ... 100% RH	±0,2 °C ±1,8% RH
EA WLAN-TP	WiFi data logger for temperature, 2 freely definable alarm thresholds. With ext. temperature sensor	-40 ... +125°C	--	±1,0 °C
EA WLAN-TP+	WiFi data logger for temperature, 2 freely definable alarm thresholds. With ext. temperature sensor, increased accuracy	-40 ... +125°C	--	±0,3 °C
EA WLAN-TC	WiFi data logger for temperature, 2 freely definable alarm thresholds. With ext. K-type temperature sensor	0 ... +400°C	--	±1,5 °C

Accessories for WiFi Data Logger

Product	Description	Temperature	Humidity	Accuracy
EA WLAN-ALARM	WLAN / WiFi alarm device visual and audible (100dBA)		--	--

Multifunction thermometer with data logger

[Translate to Englisch:] Multifunktions Thermometer mit Datenlogger

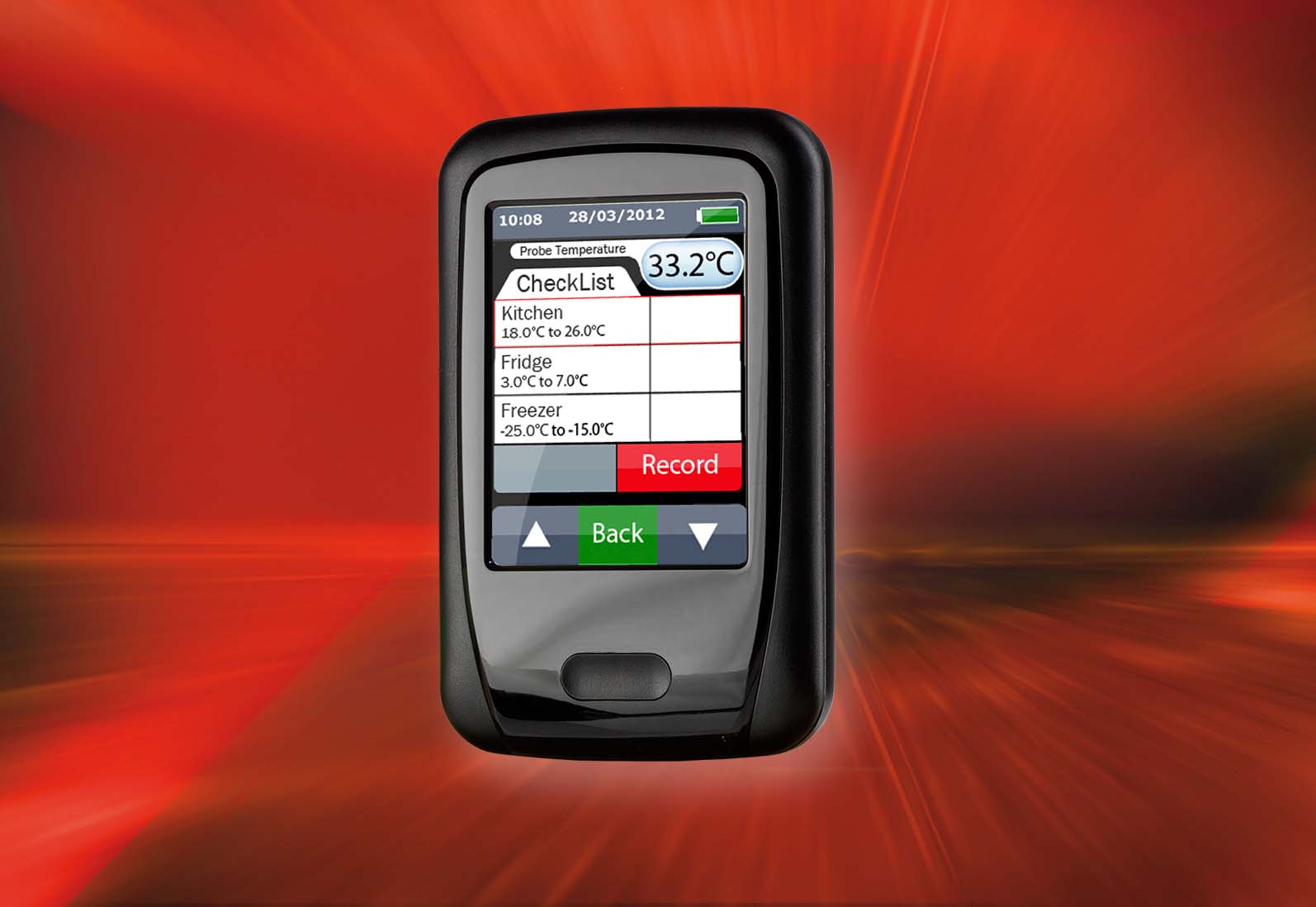

The EA 5NVPAD-TC is a versatile thermometer with integrated data logger function. In addition to the pure measuring mode, up to 65,500 measured values can be recorded per session. In total, memory is available for up to 100 sessions. The device is handy and equipped with a rechargeable battery for all-day operation. The data is read out via a USB port, which also contains a charging function.

Included is a K-type sample for temperature measurements from -100°C up to +700°C (1292°F).

Here's a link to the Datasheet.
