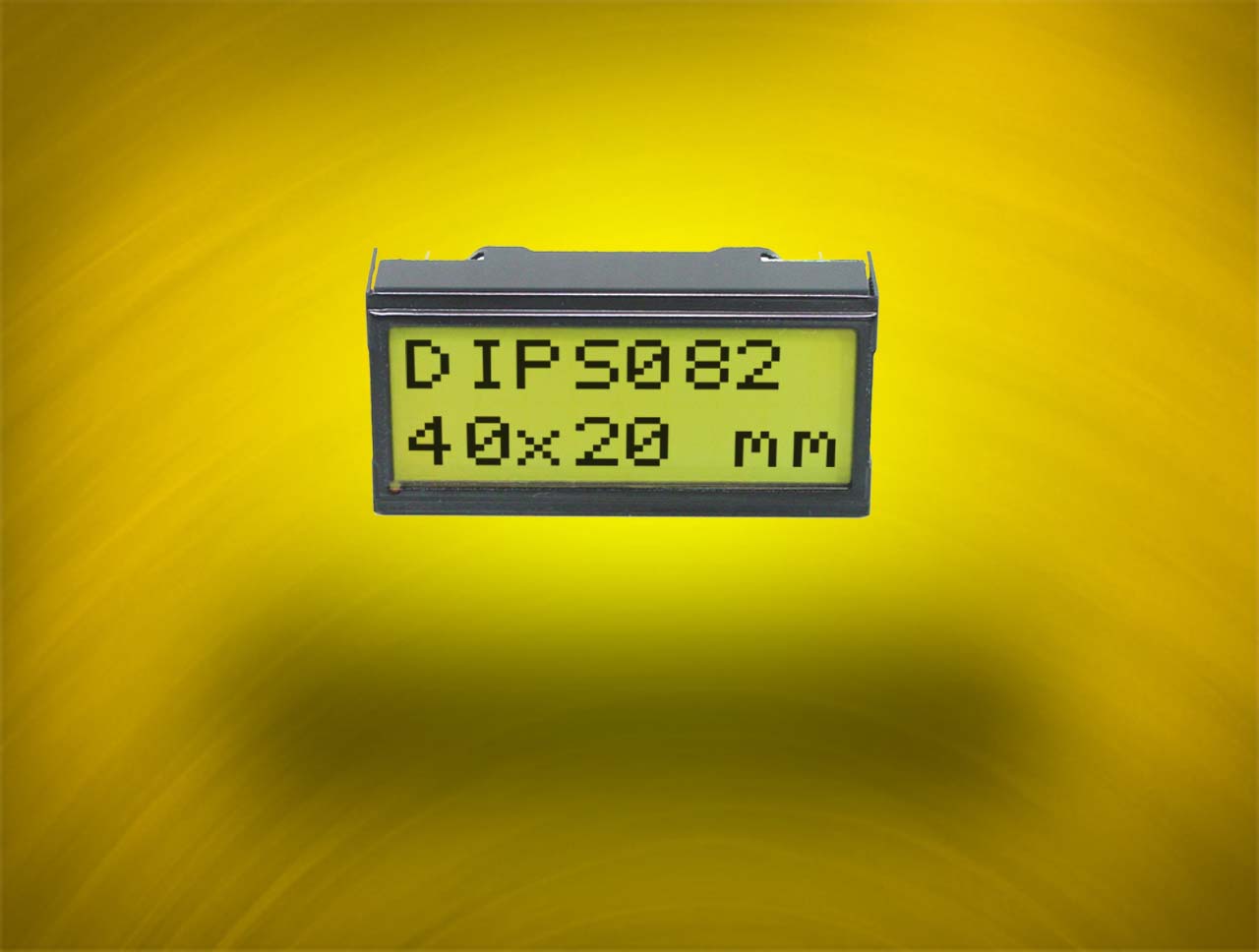

40 x 20 mm
1 x 8 and 2 x 8 characters

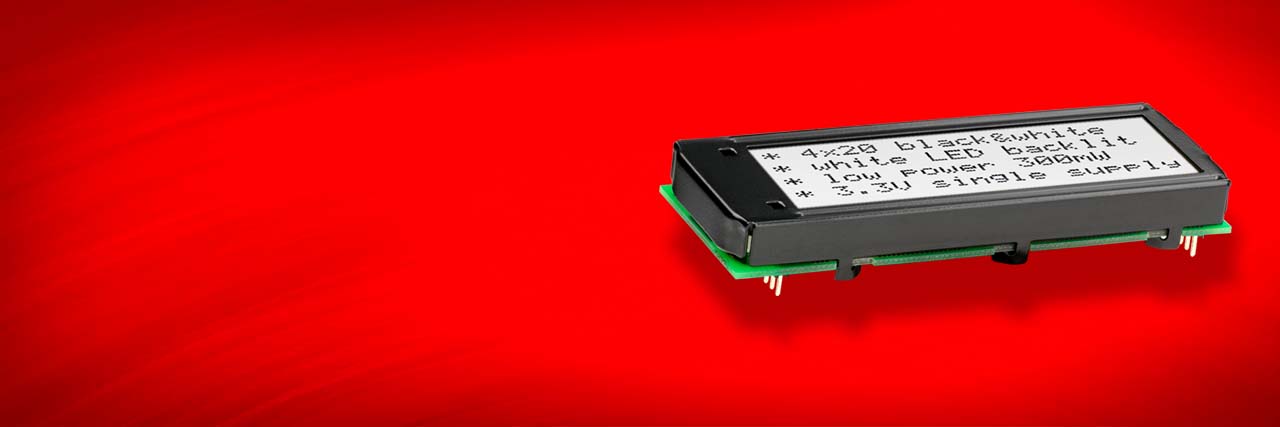

Robust text and graphic displays for industry, durable
Fast, easy assembly
This displays are simply inserted in the PCB and soldered in place. There are no screws, distance sleeves or cables required. This saves material and simplifies immediately the construction. There's a saving for every single display module during assembly. Alternatively diplays can be used with sockets.
Brochure in pdf format.
Compatible
All displays are shipped with market-standard controllers. This means that the existing hardware and software can continue to be used unchanged.
State-of-the-art display technology
Only top-quality materials are used. As a result, these displays are very easy to read and offer a high level of contrast. The design and manufacture of this display series guarantees minimum downtimes even under extreme conditions.
Technology
With a standard operating temperature of -20..+70 °C, rapid response times are guaranteed even at -20 °C. Automatic temperature compensation is usually also built-in. 5V single-supply operation is possible in all cases thanks to the built-in voltage doublers (exception: EA DIP122).
All the DIP modules at a glance
| Character | Character height | Dimensions | Ordering code | Color | Controller | Datatsheet |
|---|---|---|---|---|---|---|
| Graphic | 122x32 | 68x27mm | EA DIP122-5HNLED | yellow/green | AX6120 | DIP122-5 |
| 75x27mm | EA DIP122J-5NLA | amber | ||||
| EA DIP122B-5NLW | blue-white | |||||

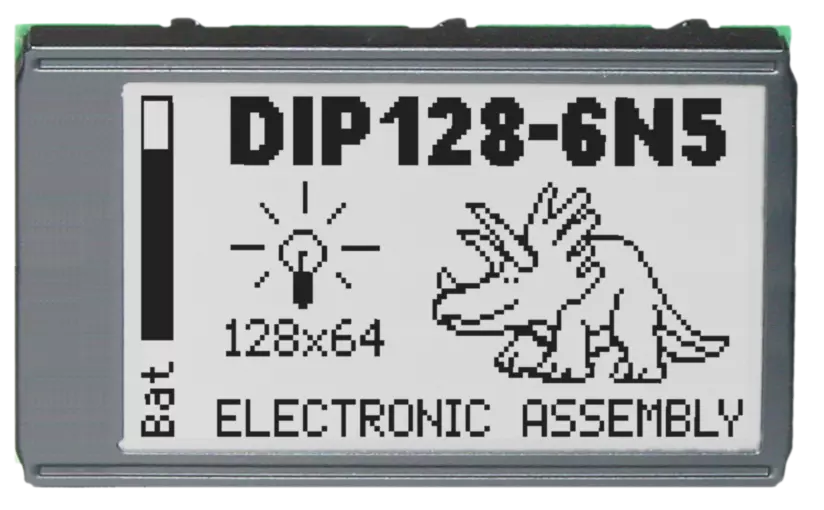

| 128x64 | 75x46mm | EA DIP128J-6N5LW | black&white | PT6608 | DIP128-6 | |
| EA DIP128J-6N5LA | amber | |||||
| EA DIP128-6N5LW | blue-white | |||||
| 180x32 | 102x27mm | EA DIP180B-5NLW | blue-white | AX6120 | DIP180-5 | |
| 240x128 | 113x70mm | EA DIP240J-7KLW | black&white | T6963 | DIP240-7 | |
| EA DIP240B-7KLW | blue-white | |||||
| 1x8 | 7.15 mm | 40x20mm | EA 8081-A3N | gray | ST7066 | 8081-A3N |
| 11.48 mm | 68x27mm | EA DIP081-CHNLED | yellow/green | ST7066 | DIP081-C | |
| 2x8 | 5.01 mm | 40x20mm | EA DIPS082-HN | yellow/green | ST7066 | DIPS082 |
| EA DIPS082-HNLED | yellow/green | |||||

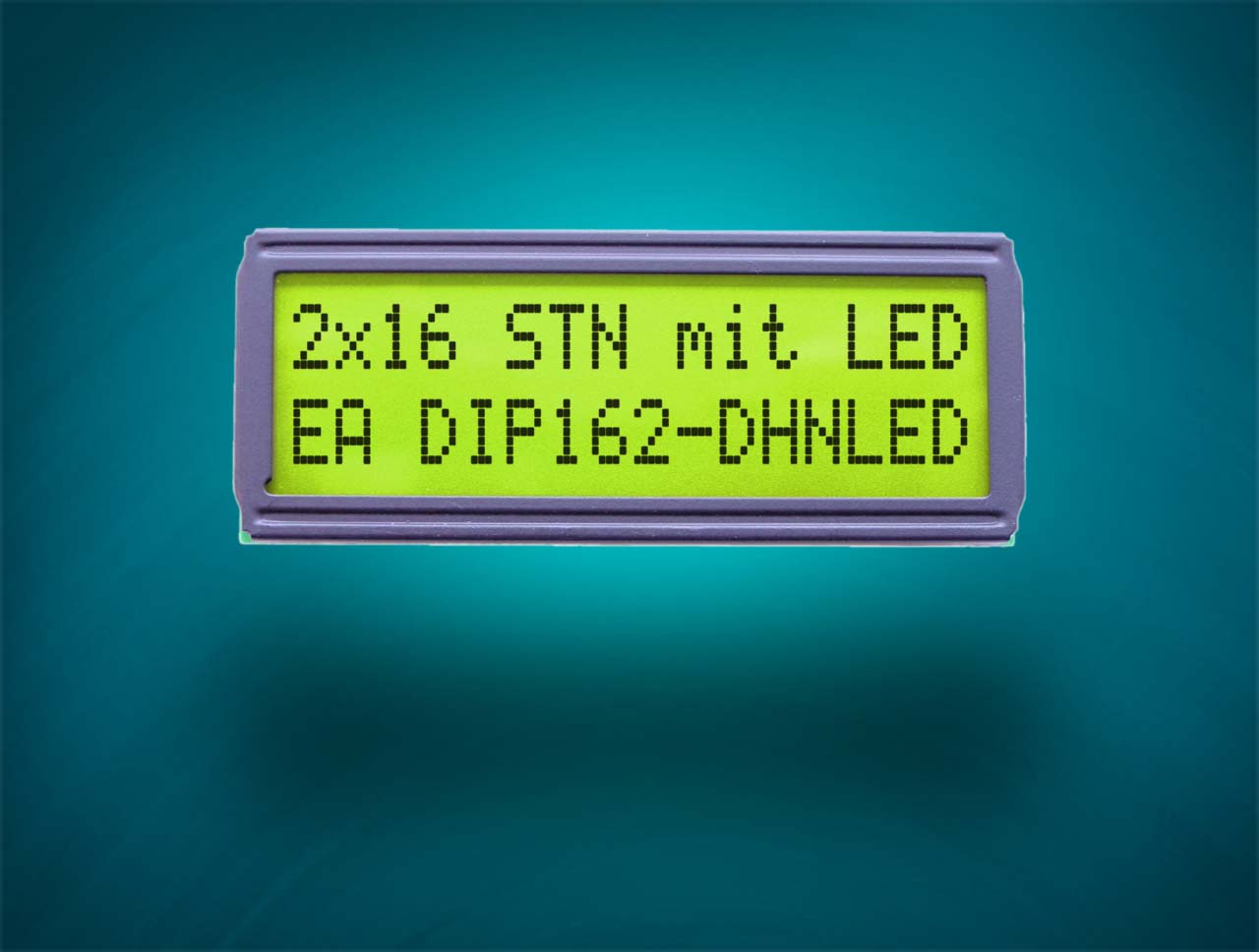

| 2x16 | 6.68 mm | 68x27mm | EA DIP162-DHNLED | yellow/green | ST7066 | DIP162 |
| 75x27mm | EA DIP162J-DN3LW | black&white | ||||
| EA DIP162-DN3LW | blue-white | |||||

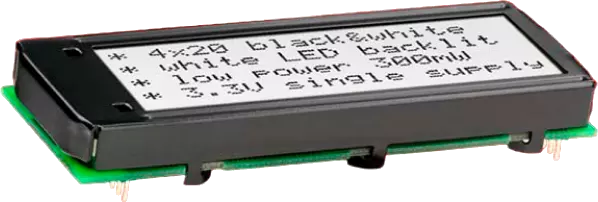

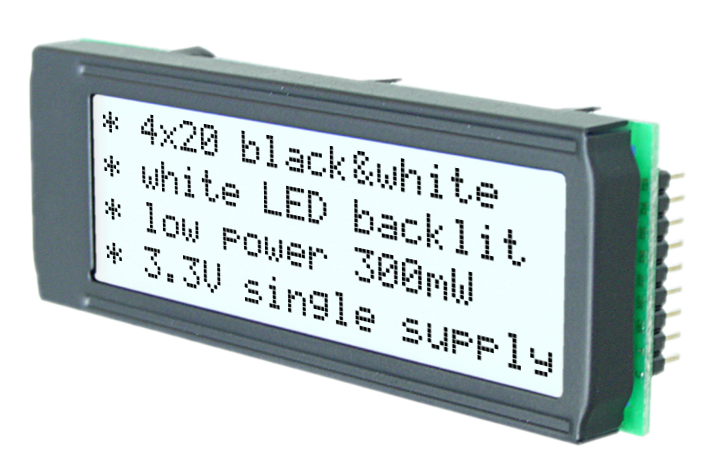

| 4x20 | 3.75 mm | 68x27mm | EA DIP205G-4NLED (EA DIP203G-4NLED obsolete) | yellow/green | ||
| 75x27mm | EA DIP205J-4NLW (EA DIP203J-4NLW obsolete) | black&white | ||||
| EA DIP205B-4NLW (EA DIP203B-4NLW obsolete) | blue-white | |||||
| 6.45 mm | 75x46mm | EA DIP205J-6NLW (EA DIP203J-6NLW obsolete) | black&white | |||
| EA DIP205B-6NLW (EA DIP203B-6NLW obsolete) | blue-white |
68(75) x 27mm
1x 8, 2 x 16, 4 x 20
characters, and
122 x 32 pixels
for graphics

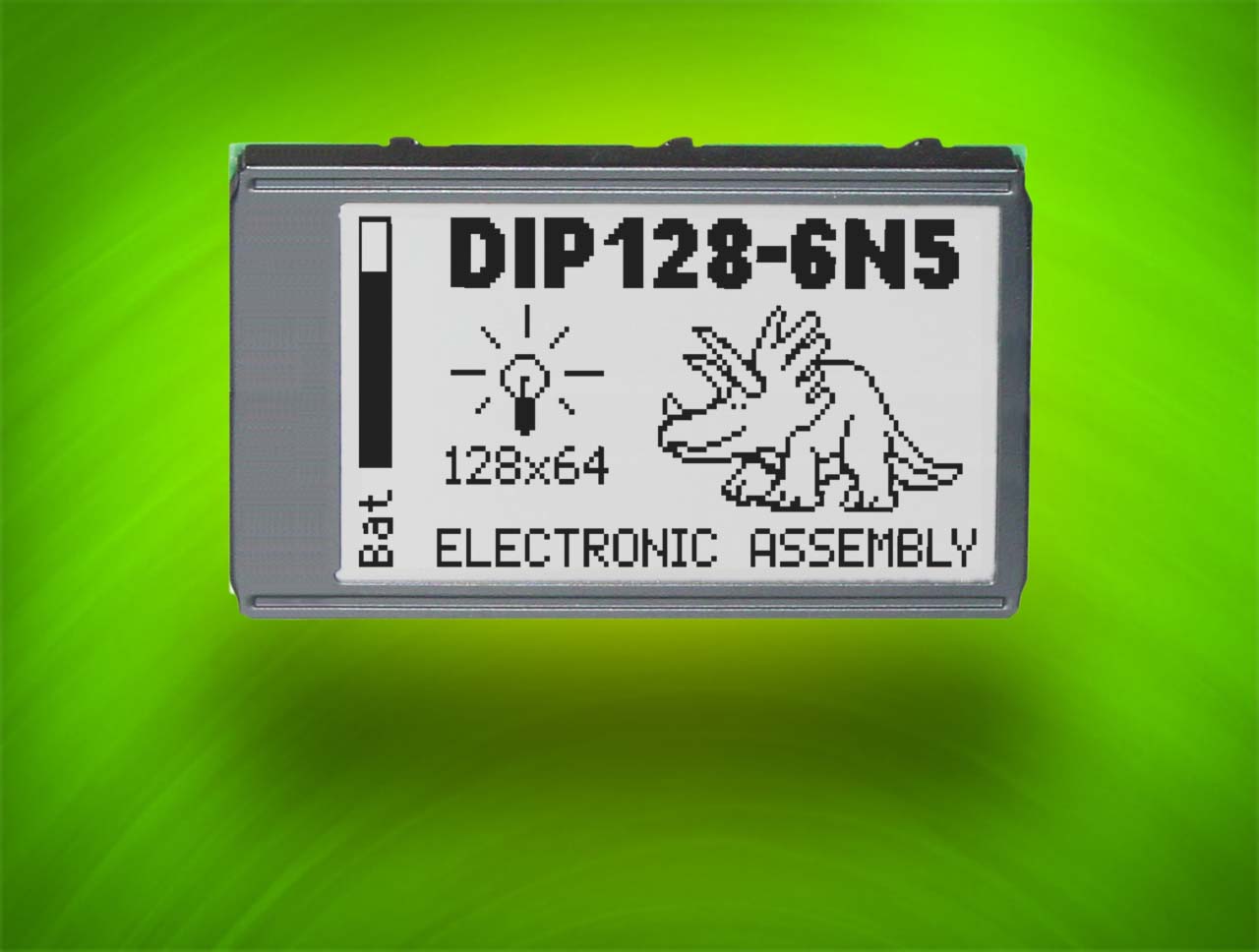

75 x 46mm
4x 20 characters and
128 x 64 pixels for graphics
Touchpanel optionally

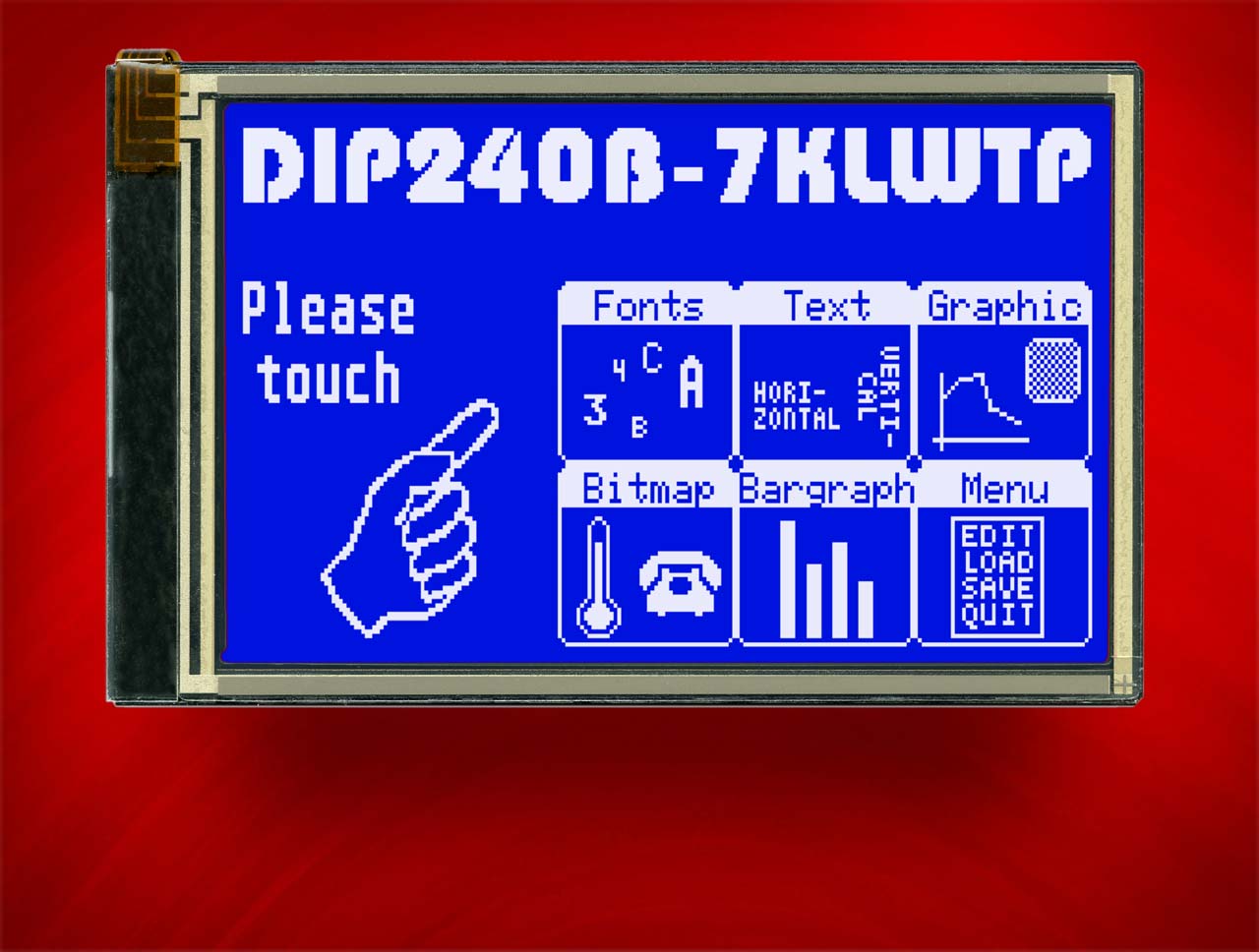

113 x 70mm
Graphics 240 x 128 pixels
Touchpanel optionally

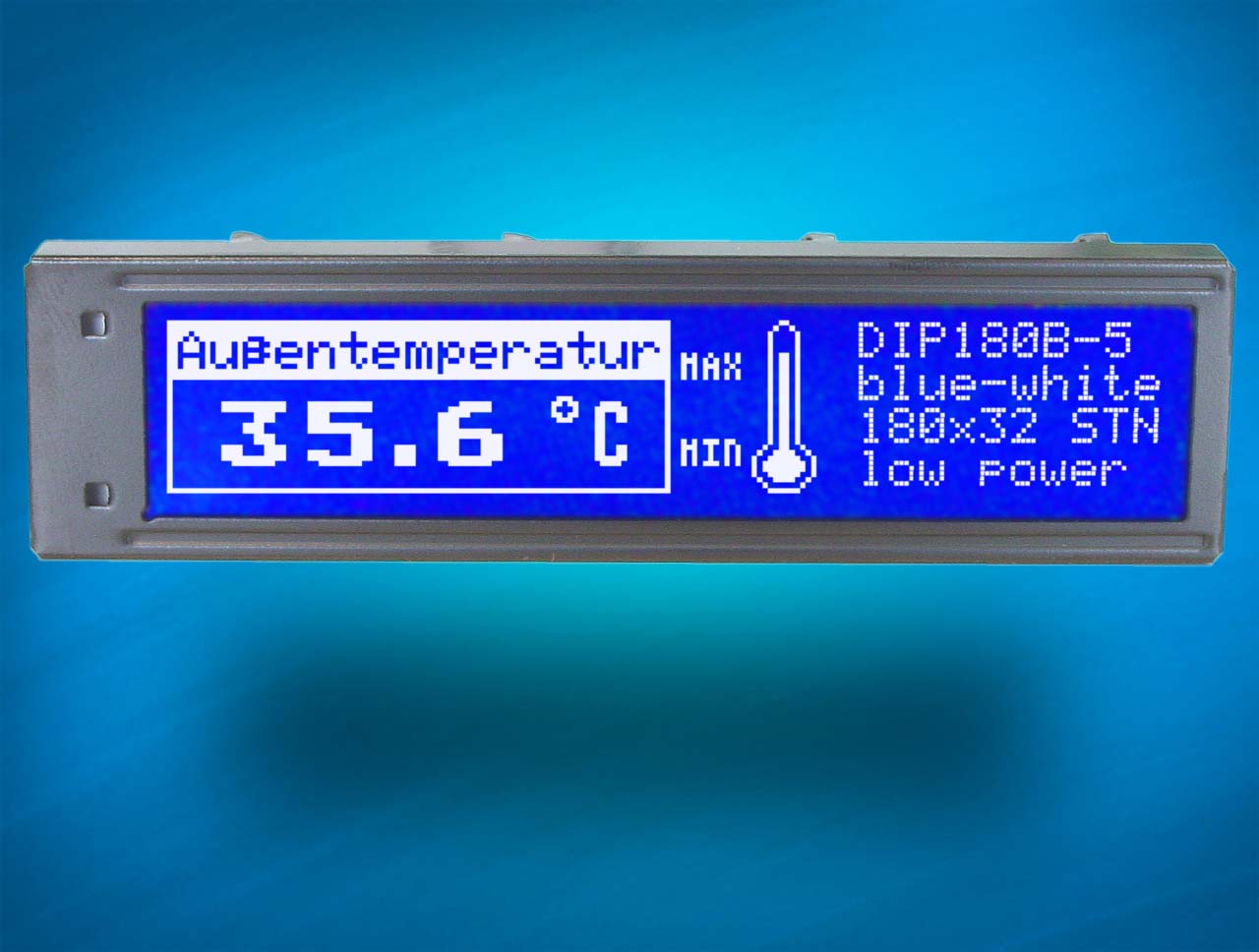

102 x 27mm
180x32 dots, 3x AX6120
Touchpanel optionally

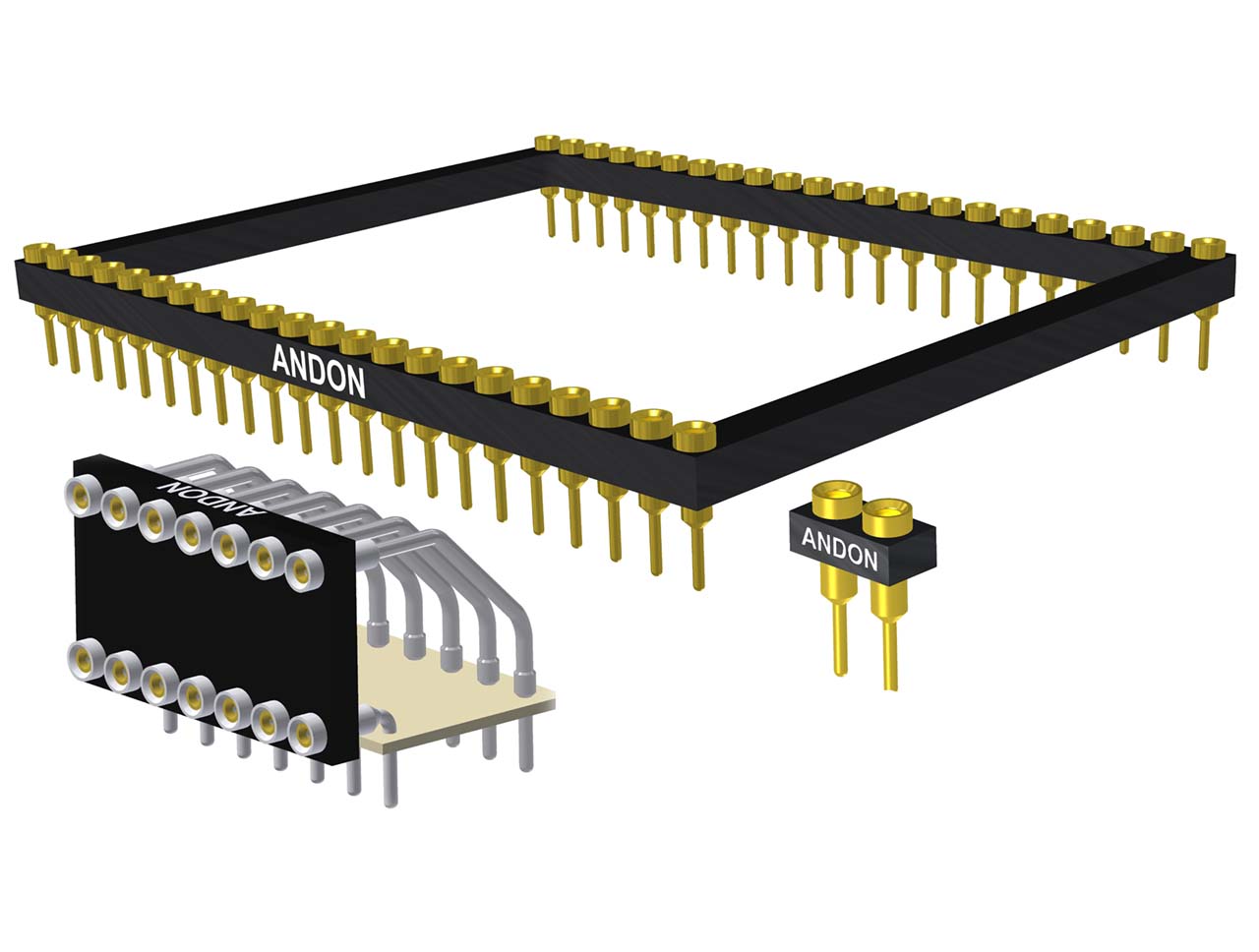

Socket
DIP displays can also be assembled via socket. Suitable types are mentioned in relating data sheet.
Alternatively Andon Electronics (USA) provides self developed sockets. Click here for a list.
