Compact PLC with Touch

EA SPS



  • plus brilliant satellite displays
  • core for top-hat rail
  • link via LAN, WiFi, RS485
  • 1,000 cd/m² (typ.)
  • 1.5" up to 12"

Modern, compact small PLC control unit with touch display

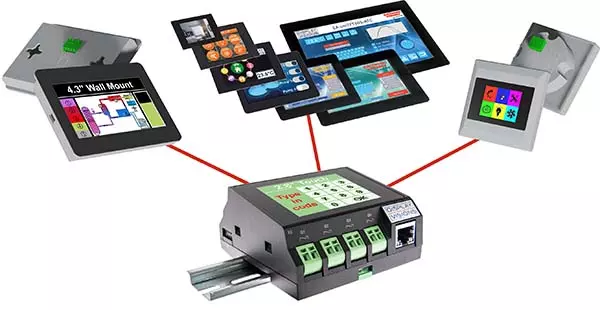

PLC - Small Control Unit with up to 50 satellite displays

Control and visualization. The new PLC series expands the classic small control unit in the control cabinet with an integrated color display inclusive touch. In addition, this solution enables visualization on up to 50 satellite displays. There, measured values can be displayed and settings can be made by touch. Thanks to edge computing, even complex and visually appealing screen layouts can be easily implemented.

Wi-Fi, RS-485, USB, Ethernet

Program your control tasks via USB and connect the desired satellite displays via RS-485 or wirelessly via Wi-Fi/WLAN.

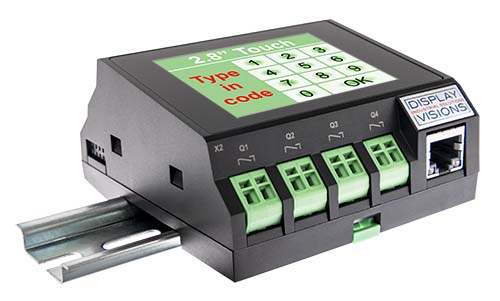

The basic version of the PLC-Core for DIN rail mounting offers 8 digital inputs, 4 relay outputs, 4 analog inputs (0-10V or 4-20mA) and one RS-232. Including Real-Time-Clock. The supply voltage is 12-24V.
In the control unit (core) there is a high quality TFT display with touch panel already to monitor the most important parameters.

Here you will find the two data sheets for hardware and software:

Arbitrarily expandable

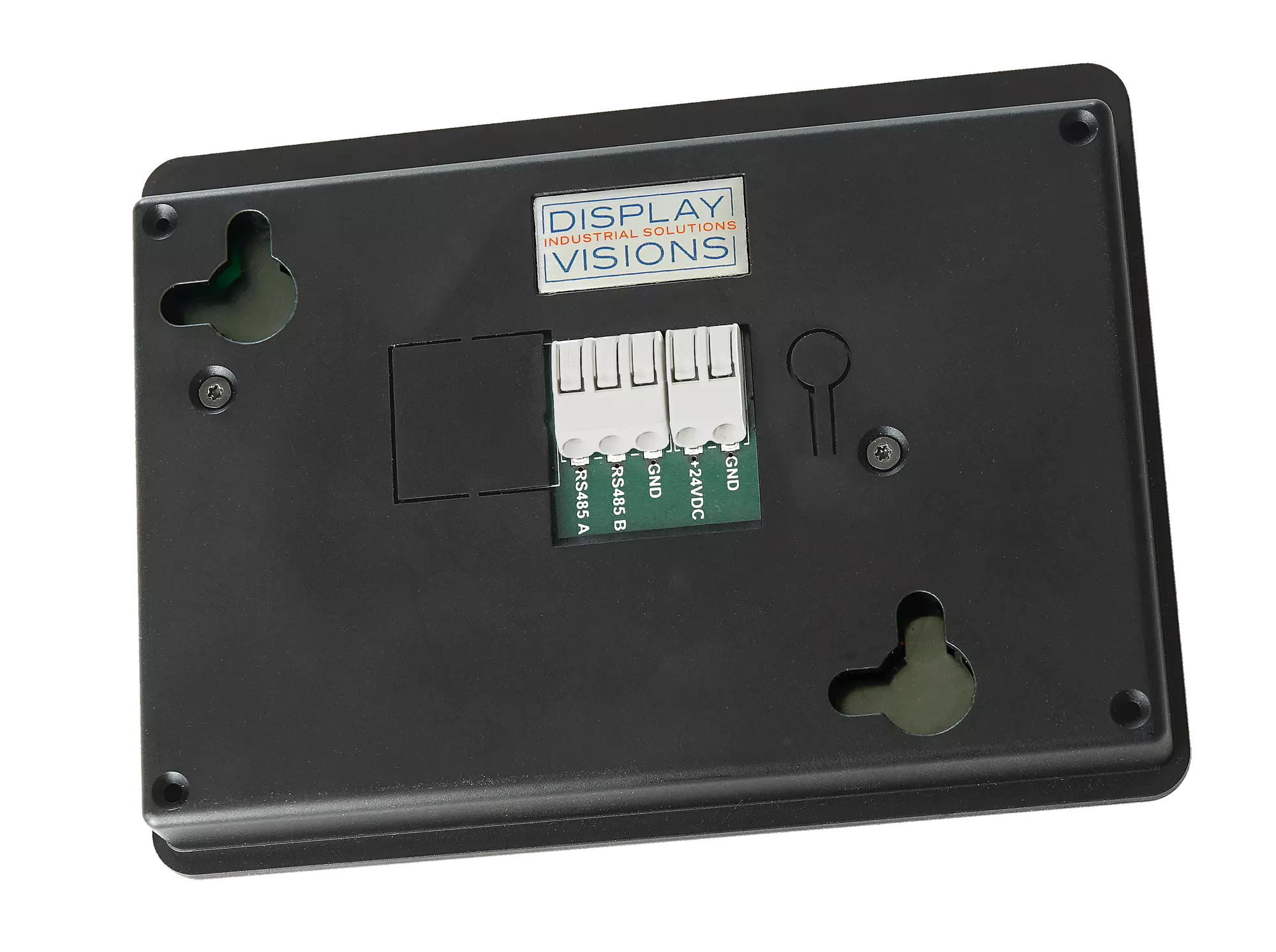

Different requirements need different displays. Choose from 5+1 different sizes - as a recessed solution, for wall mounting ond integraton in front plate or door. All displays were developed in Germany. The support includes at any time a direct contact person from the development incl. assistance in programming.

 Core 2.8“2.8“4.3“7“10.112.1“
Resolution320x240320x240480x2721024x6001280x8001280x800Pixel
Dimension 84x58114x84190x125260x185t.b.d.mm
DIN-railyes
U-Plaster mount
Wallmount yesyesyesyesyes
Integration yesyesyesyes
Temp. Range-20..+70°C
Supply Voltage12-24VV
DisplayIPS with PCAP, optically bonded

Individually networked

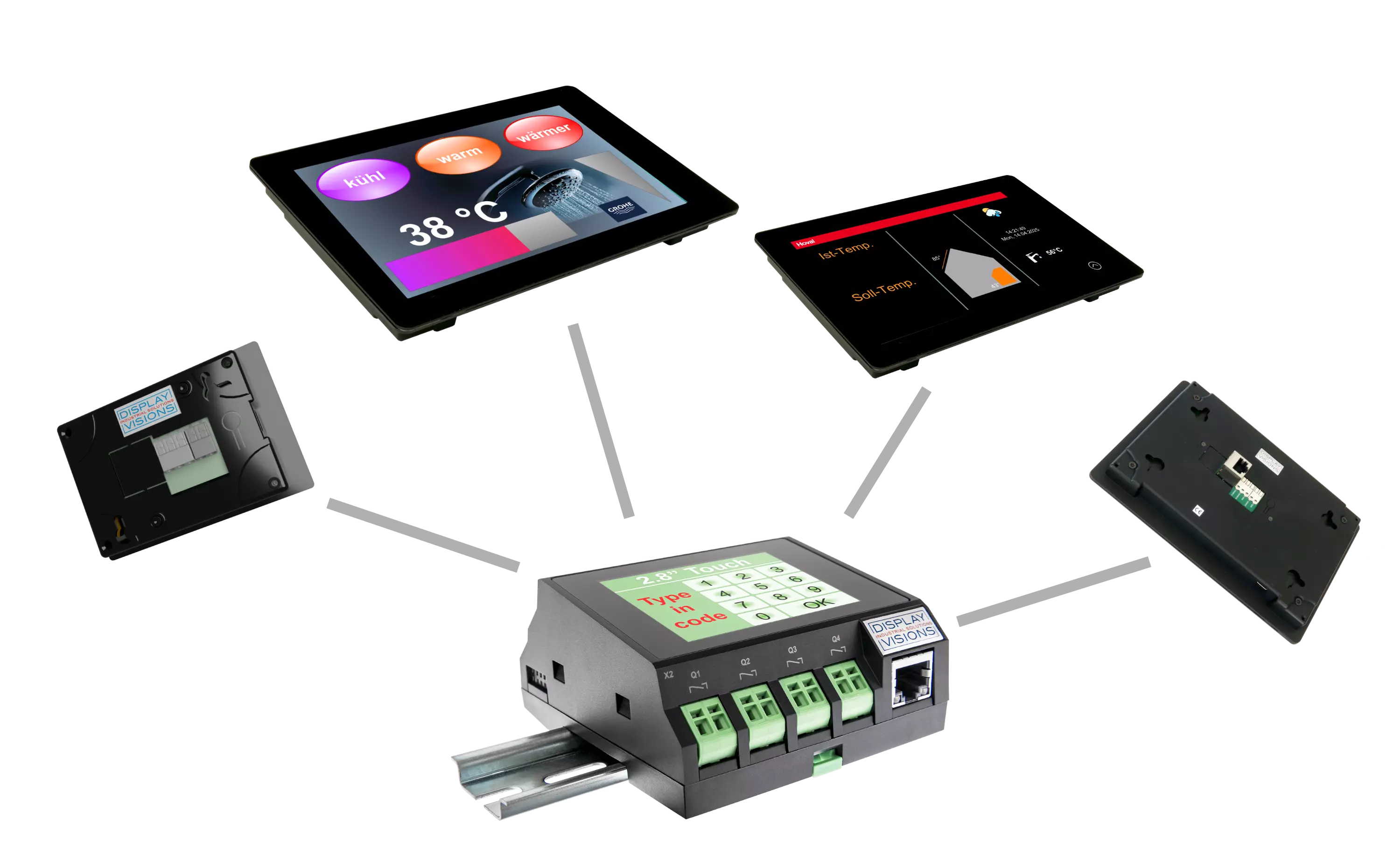

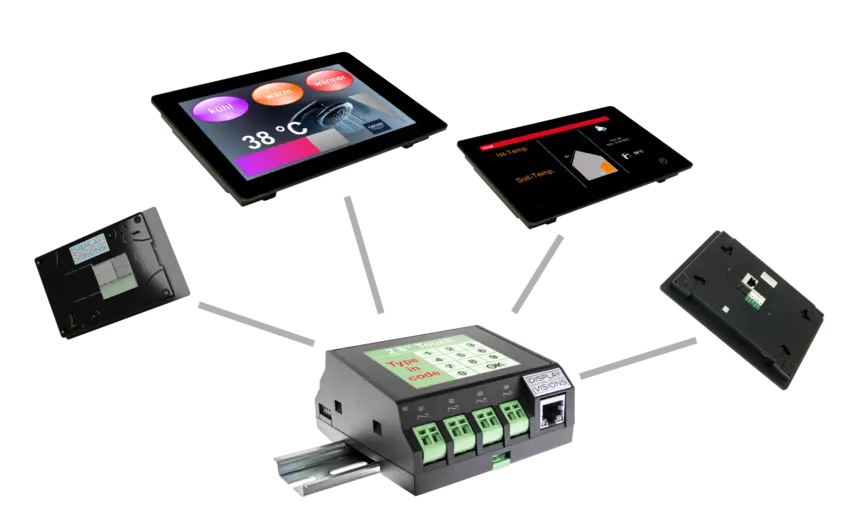

All process parameters are automatically synchronized with the satellite displays. This means that displaying current values can be flexibly implemented on one display, as well as individual settings for process parameters at another location. Each display follows its individual purpose: for service, work preparation, monitoring or management. Satellite displays are available in different sizes and designs.

PLCDesigner - The Windows Quick Programmer Tool

All touch and display functions as well as animations are freely programmable via the free Windows tool "PLCDesigner". Using a graphical WYSIWYG editor, individual pages can be created: here a background, there a logo and text, further a measured value, a slider, etc.

The tool also includes a simulator with which the result is immediately visible on the PC; including functionality via touch and the inputs and outputs on the core. Manage all satellites and connections in your project clearly. Download:

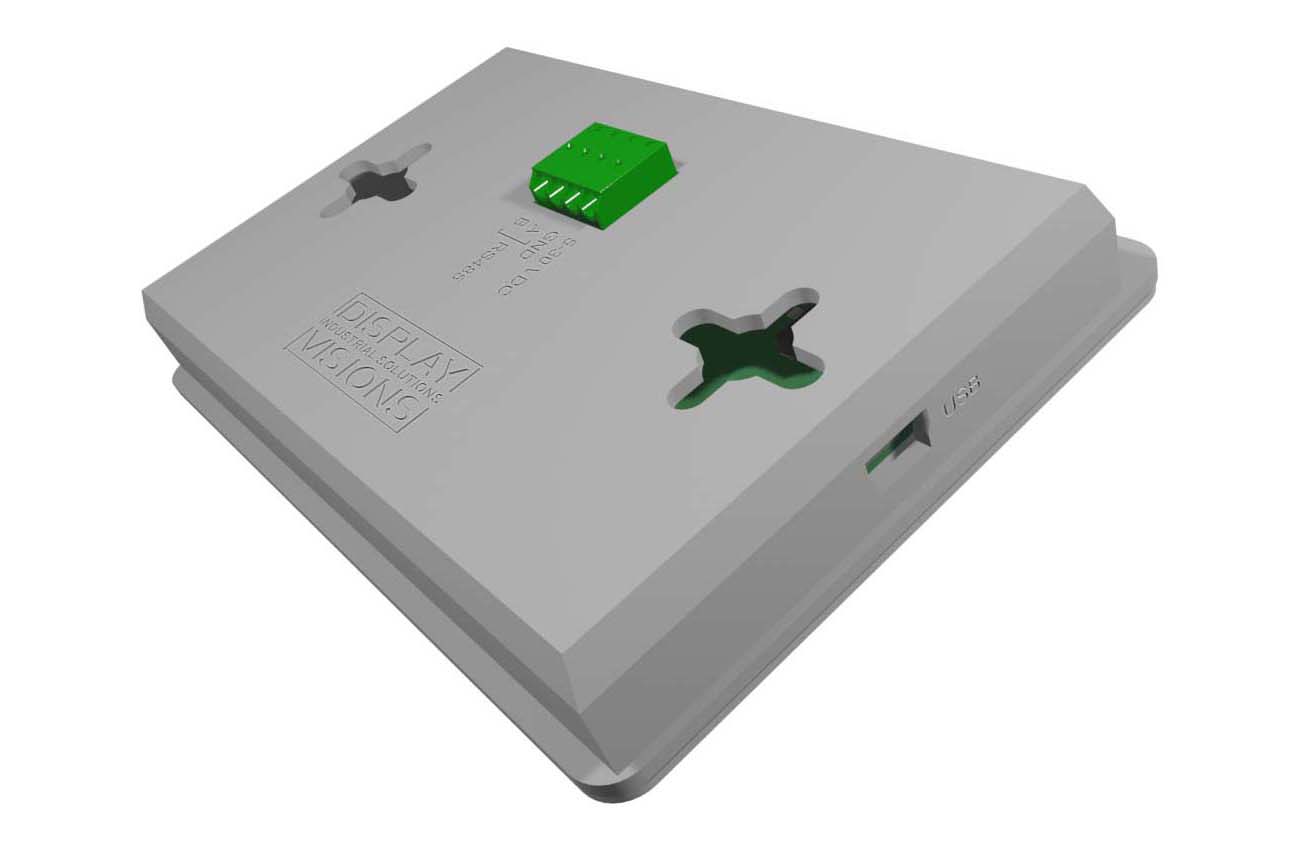

Wall mounting, DIN rail, flush-mounting, integration

Different locations require different housings. Therefore DISPLAY VISIONS offers all sizes as a built-in solution for seamless integration into your device. Alternatively, solutions with a housing for surface mounting are also planned. The small 2" display is also available for flush mounting (U-plaster).
In each case, the front is made of scratch-resistant glass. Thanks to a touch-sensitive surface, direct and intuitive interactions are possible. The following formats are planned: 2", 2.8", 3.5", 4.3", 5", 7", 10.1" und 12,1". All brilliant displays with 1,000 cd/m² in outstanding IPS technology for an all-round viewing angle and stable colors.

Buy compact plc incl. touch at our webshop

SPS with Display and Touch

The first small PLC with color display and touch.

For simple setup and as a status display. No computer required, no cell phone, no app. No licenses. Everything included.
