Crisp IPS Displays in all sizes

The small, coloured displays from DISPLAY VISIONS are the perfect replacement for monochrome displays. They impress thanks to their rich colours and strong contrasts, and have amazing angle stability.

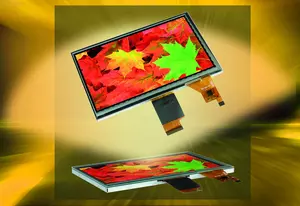

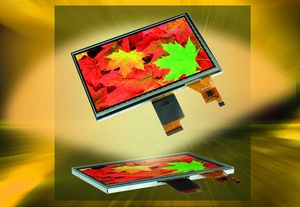

With the EA TFT series, DISPLAY VISIONS has a series of small IPS colour displays to offer which are also excellently suited if you wish to replace monochrome graphics displays. In terms of the IPS technology, the light-conducting liquid crystals are aligned parallel to the image plane. This special arrangement means that colours and contrasts remain brilliant and stable, even if the viewing angle changes. The graphics displays can therefore be installed in a portrait format as well as landscape without any loss of readability. With maximum brightness levels of up to 1,000 cd/m², the displays are still clear to read even in direct sunlight.
The displays are currently offered in sizes from 0.96 inches (EA TFT009-81AINN) to 10.1 inches (EA W1280X-101ALW). In spite of its compact dimensions, even the EA TFT009-81AINN has a resolution of 80 x 160 pixels. As well as the standard RGB connection, some smaller displays also have a four-wire SPI, which saves pins. The µC data bus allows 8-bit or 16-bit parallel access. For SMD assembly, the right connectors are included as accessories. Even the smallest displays are available combined with a resistive or capacitive touch panel. Designed for industrial applications, the service life of the sturdy IPS displays is 50,000 hours at a broad operating temperature range from -20°C to +70°C. They are available right now and, as with all their products, DISPLAY VISIONS GmbH also offer long-term availability and a comprehensive support package.

More information: TFT-Displays (IPS)
