Professional display modules for industry
For over 45 years we have been developing, producing and selling displays and accessories: LCD, TFT, OLED modules, as well as touch panels and HMI
Making things easy
With a very broad product range of high-quality industrial displays, DISPLAY VISIONS (formerly ELECTRONIC ASSEMBLY) serves customers from a variety of industries, from process automation to mechanical engineering and information technology. In-house development and production allow DISPLAY VISIONS to cover a wide range of the display value chain. As a classic medium-sized company in the best sense of the word, the company can respond flexibly to a wide range of customer requirements.
Our Philosophy
Markets and Applications
Our LCD modules are used in a wide range of applications—from industrial and automotive to medical and consumer electronics.
With robust, energy-efficient, and customizable displays, we meet the requirements of diverse industries and projects.
Modbus HMI 4,3" and 7" incl. Touch
Brilliant HMI displays for all PLCs with Modbus: bright + high-contrast for wall and panel mount.
For all common PLCs.
Compact PLC with 2.8" Touchdisplay
Small control unit with high-quality satellite displays show the condition of your system on site.
Settings can be done via touch panel.

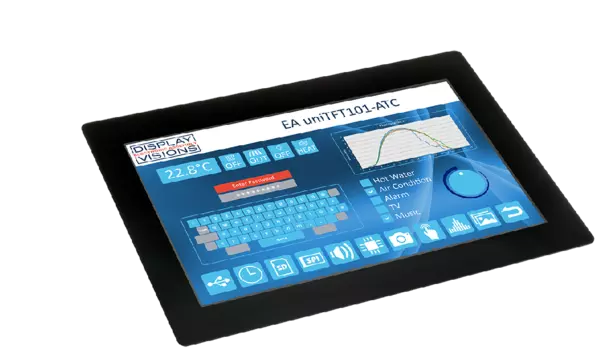

HMI units uniTFT series
True smartphone feeling: objects can be placed anywhere, they can be moved or deleted at every time. Stylish effects like fade in and out or blowing in are already integrated!
OLED Text and Graphic Displays
The new OLED technology provides because of its real black background and its active technology a contrast ratio of minimum 2000:1.
ChipOnGlass Very flexible "DOG" series
This new display series was specially developed for low-power hand-held applications. Interface is SPI and the optionally available LED backlighting can also be run with 3.3V or 5V.
EA eDIP Serial Graphic
This is how graphics programming will look in the future: no more ''pixel programming'' but, instead, efficient operation with extensive drawing functions and fonts
EA DIP Direct Mounting
Because of their design, DIP modules are extremely compact: there is no PCB overhang, no drilled holes for assembly and no contact pads for connectors or cables.
TFT Displays with SPI, I²C EA eDIPTFT series
As the first in the world we do provide TFT displays with 3.2", 4.3" and 7", which are immediately running and do provide from the first minute the full functionality.
EA KIT Controls Panels
The EA KIT120-5LEDTP graphics kit is a fully assembled control from 2,4" to 5,9" and operating unit with a variety of integrated functions.
Character 1x8 to 4x40 4-/8-Bit Interface
The dotmatrix LCDs offered here are equipped with the controller HD44780 or compatible; they come with integrated character set and are for operation on 4- or 8-bit data bus. Available in blue-white or green/yellow

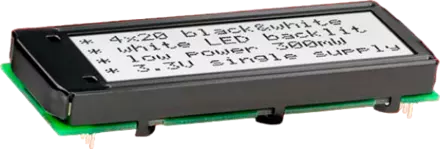

Text Displays with RS-232
Our serial devices are a dot-matrix LCD series of products that are ready for operation with a driver and a bezel or a snap-in housing.
DVM / Counter for mounting
Completely autonomously running function modules such as voltmeter, operating hours counter and event counter.
USB / WiFi DataLogger
DISPLAY VISIONS can supply a data logger to monitor and record ambient temperature, relative humidity and dew point. Drivers for current versions of Windows are provided.
![[Translate to Englisch:] Softwareerstellung und Anpassung](/fileadmin/_processed_/b/3/csm_Header_SoftwareService_230x130_a409b7b8f8.webp "[Translate to Englisch:] Softwareerstellung und Anpassung")
Software Service for HMI units
Professional project support from the idea to mass production including software customization and implementation of an application.
Video - Who is DISPLAY VISIONS

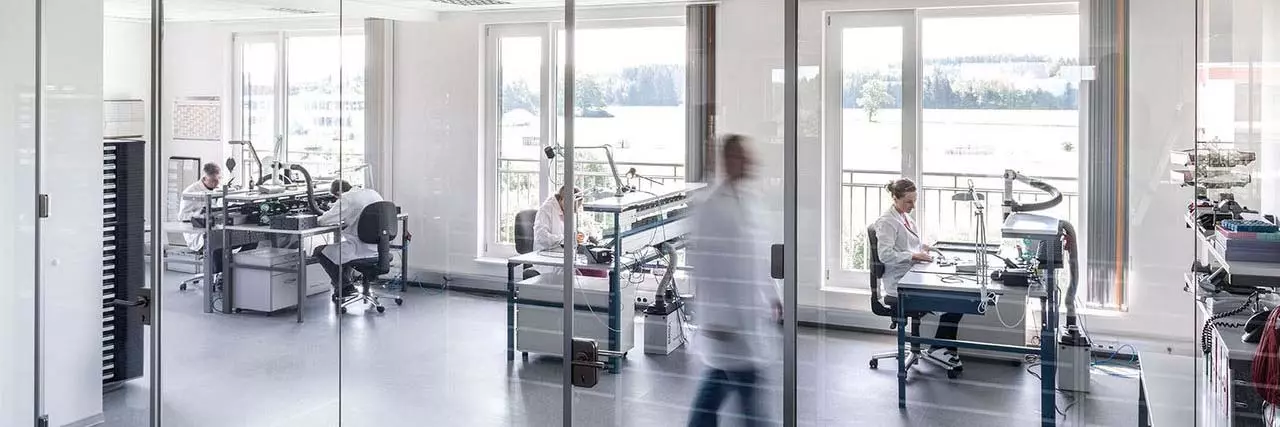

DISPLAY VISIONS (formerly: ELECTRONIC ASSEMBLY) is THE manufacturer for high-quality industrial displays. See here where and how these displays are developed and manufactured.
OLED displays, TFT displays (IPS), HMI with touch, LCD modules designed, developed and produced in Germany and other countries.
