Graphics HMI with USB and OLED Display
Brand new are our graphic capability OLED displays with USB connection and integrated touchpanel. They are good for wholesome control unit or as a display only.
In addition to some serial interfaces like RS-232, SPI and I²C there are some digital and analoge in- and outputs also. With the use of those some simple control actions with fixed display content can be realized. Currently there are 2 sizes available with 2.9" and 82x67x21mm same as 1.7" with 55x54x21mm.

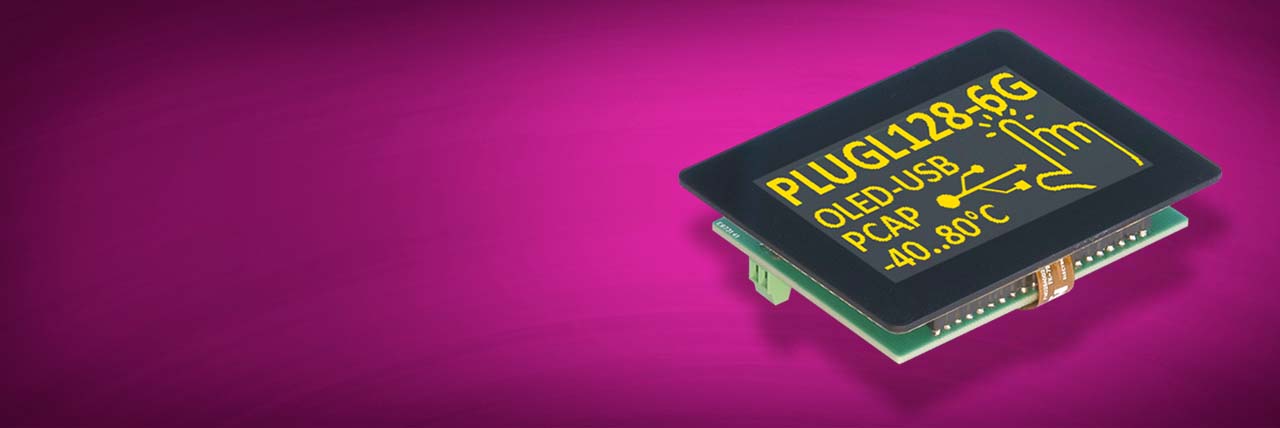

EA PLUGL128-6GTC OLED with USB and ZIFF connector for FPC
EA PLUGL128-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's
EA PLUGS102-6GTC OLED with USB and ZIFF connector for FPC
EA PLUGS102-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's
Assembly is very easy with a simple put-into frontal plate and mount via self-adhesive stripes - portrait mode and landscape. Datasheet.
Serial devices with RS-232/RS-422
Our serial devices are a dot-matrix LCD series of products that are ready for operation with a driver and a bezel or a snap-in housing. They are connected to a standard RS-232C interface (or, optionally, an RS-422). The data transmission rate can be set to 300, 1,200, 2,400 or 9,600 bps. All cursor control (line feed etc.) is automatic. The displays are equipped with LED lighting that can be switched off by software means.
All displays except for 8- and 16-line displays are available for a 5V or 9-35V supply.
Addressing: Thanks to selectable addresses, up to 64 displays can be addressed separately at a serial interface (EA OPT-DIP6).
Prices as of 25 items begin at 78.22 euros*). Smaller quantities can also be delivered at short notice. You will find more information in our flyer and the data sheet.
*) Prices quoted are inclusive of 19% sales tax.
Seriel Displays - Table
| Serial displays with RS-232C/RS-422 and LED lighting | ||||||
| Product | Lines x characters | Character height | Module size WxHxD | Viewing area WxH | Including bezel | Power (typically) |
| 1-line displays | ||||||
| EA SER081-92NLED | 1 x 8 | 11.48 mm | 77x54x26 | 56.5x22 | Snap-in housing | 120 mA |
| EA SER081-CNLED | 1 x 8 | 10.8 mm | 84x44x26 | 61x15.8 | 017-2UKE | 30 mA |
| EA SER161-DNLED | 1 x 16 | 6.56 mm | 80x36x27 | 64.5x13.8 | 017-1UKE | 100 mA |
| EA SER161-ENLED | 1 x 16 | 9.66 mm | 122x33x27 | 99x13 | 017-6UKE | 170 mA |
| 2-line displays | ||||||
| EA SER082-CNLED | 2 x 8 | 11.44 mm | 84x44x27.5 | 63x25 | 017-8UKE | 90 mA |
| EA SER162-N3LW blue | 2 x 16 | 5.55 mm | 80x36x27 | 61x15.8 | 017-2UKE | 40 mA |
| EA SER162-CNLED | 2 x 16 | 4.35 mm | 80x36x27 | 64.5x13.8 | 017-1UKE | 90 mA |
| EA SER162-NLED | 2 x 16 | 5.55 mm | 84x44x27 | 61x15.8 | 017-2UKE | 120 mA |
| EA SER162-NLW blue | 2 x 16 | 5.55 mm | 84x44x27 | 64.5x16 | 017-2UKE | 40 mA |
| EA SER162-92NLED | 2 x 16 | 6.68 mm | 77x54x26 | 56.5x22 | Snap-in housing | 120 mA |
| EA SER162-BNLED | 2 x 16 | 9.66 mm | 122x44x29 | 99x24 | 017-12UKE | 360 mA |
| EA SER162-BNLW blue | 2 x 16 | 9.66 mm | 122x44x29 | 99x24 | 017-12UKE | 65 mA |
| EA SER202-NLED | 2 x 20 | 5.55 mm | 116.5x39x29 | 85x18.6 | 017-7UKE | 210 mA |
| EA SER202-NLW blue | 2 x 20 | 5.55 mm | 116.5x39x26 | 85x18.6 | 017-7UKE | 40 mA |
| EA SER202-BHNLED | 2 x 20 | 9.20 mm | 146x43x27 | 123x23 | --- | 270 mA |
| EA SER242-NLED | 2 x 24 | 5.55 mm | 118x36x27 | 93.5x15.8 | 017-14UKE | 150 mA |
| EA SER242-BNLED | 2 x 24 | 9.66 mm | 208x40x29 | 178x23 | --- | 190 mA |

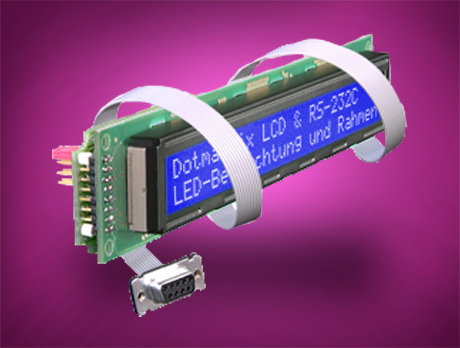

| EA SER402-NLED | 2 x 40 | 5.55 mm | 182x33.5x29 | 154.1x15.3 | 017-4UKE | 150 mA |
| EA SER402-NLW blue | 2 x 40 | 5.55 mm | 182x33.5x27 | 154.1x15.3 | 017-4UKE | 40 mA |
| 4-line displays | ||||||
| EA SER164-NLED | 4 x 16 | 4.75 mm | 87x60x27 | 61.8x25.4 | 017-8UKE | 220 mA |
| EA SER204-92NLED | 4 x 20 | 3.72 mm | 77x54x26 | 56.5x22 | Snap-in housing | 120 mA |
| EA SER204-4NLED | 4 x 20 | 4.03 mm | 80.5x47x29 | 60x22 | --- | 90 mA |
| EA SER204-NLED | 4 x 20 | 4.75 mm | 98x60x29 | 76x25.2 | 017-9UKE | 260 mA |
| EA SER204-NLW blue | 4 x 20 | 4.75 mm | 98x60x29 | 76x25.2 | 017-9UKE | 45 mA |
| EA SER204-BNLED | 4 x 20 | 9.2 mm | 146x62.5x27 | 123x42.5 | 017-25KE | 810 mA |
| EA SER404-HNLED | 4 x 40 | 4.89 mm | 190x54x29 | 147x29.5 | 017-13UKE | 440 mA |
| EA SER404-NLW blue | 4 x 40 | 4.89 mm | 190x54x29 | 147x29.5 | 017-13UKE | 75 mA |
| 8-line displays | ||||||
| EA SER408-NLED | 8 x 40 | 4.2 mm | 180x65x27 | 134x40 | 017-10UKE | 300 mA |
| 16-line displays | ||||||
| EA SER4016-NLED | 16 x 40 | 3.6 mm | 144x104x27 | 114x64 | --- | 700 mA |

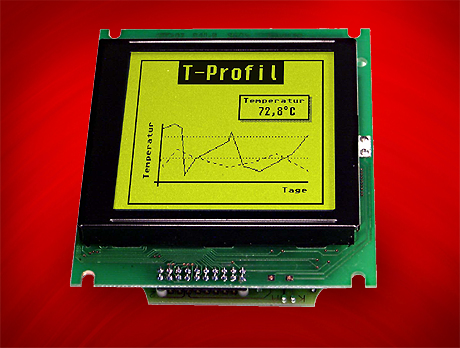

Graphics units EA GE128-7KV24
LCD graphics units are intelligent graphics displays with a serial RS-232 interface. Two or three integrated character sets and a wide range of graphics functions permit the time- and cost-saving use of the latest LCD graphics displays. Apart from a supply voltage of +5V and RS-232 data, no further signals are required. No additional software or special drivers are required for their operation. All the graphics routines are integrated in the display's in-built high-level graphics controller. This permits the creation of a clear and attractive display using only a few commands. All functions are positioned with pixel accuracy by means of x/y coordinates (e.g. draw straight line: G x1 y1 x2 y2).
Prices for all graphics units if you order 25 are between 70.25 and 212.23 euros*). You will find more information in the relevant data sheets in PDF format.
*) Prices quoted are inclusive of 19% sales tax.
Grafic units - Tabelle
| Product | Resolution | Dimensions | Fonts | Option | Notes | Data sheet | Photo |
| EA GE120-5NV24 | 120x32 | 68x39x13 | 2 + zoom | LED lighting | GE120 |  | |
| EA GE128-6N9V24 | 128x64 | 57x46x7.5(15) | 5 + zoom | EL lighting | GE128-69 |  | |
| EA GE128-6N3V24 | 128x64 | 84x60x24 | 3 + zoom | DIP6 | LED lighting | GE128-6 |  |
| EA GE240-6KV24 | 240x64 | 180x65x28 | 3 + zoom | DIP6 | LED lighting | GE6963 |  |
| EA GE240-6KCV24 | 240x64 | 189x65x36 | 3 + zoom | DIP6 | Negative FSTN blue, CFL lighting |  | |
| EA GE240-7KV24 | 240x128 | 144x104x28 | 3 + zoom | DIP6 | LED lighting |  | |
| EA GE240-7KCV24 | 240x128 | 151x104x36 | 3 + zoom | DIP6 | Negative FSTN blue, CFL lighting |  | |
| EA GE240-7K2CV24 | 240x128 | 170x105x36 | 3 + zoom | DIP6 | Negative FSTN black/white,CFL lighting |  |

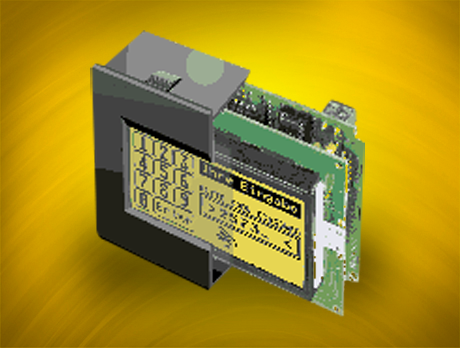

Graphics kits in housing/with front panel - EA KIT160
DISPLAY VISIONS offers 3 LCD graphics displays in different sizes in a snap-in housing: EA KIT120, KIT128 and KIT160. 3 further sizes are available with an anodized mounting panel in black or blue: EA KIT240-6, KIT240-7 and KIT320-8. They are controlled via either an RS-232 or an RS-422 interface.
A range of integrated fonts and graphics commands make it easy to program these displays: All functions are programmed with pixel accuracy by means of x/y coordinates (e.g. draw straight line: ESC G x1 y1 x2 y2). All displays are also available with an integrated touch panel: This allows you to make entries or change the contents of the screen by touching it.
Smaller quantities can also be delivered at short notice. You will find more information on the touch panel versions in our internet page "TOUCH"
