Professional display modules for industry
For over 45 years we have been developing, producing and selling displays and accessories: LCD, TFT, OLED modules, as well as touch panels and HMI
![[Translate to Englisch:] Unterschiedliche Anwendungen, ein Anbieter](/fileadmin/_processed_/b/5/csm_AdobeStock_338538815_3785882019.webp "[Translate to Englisch:] Unterschiedliche Anwendungen, ein Anbieter")
Markets and Applications

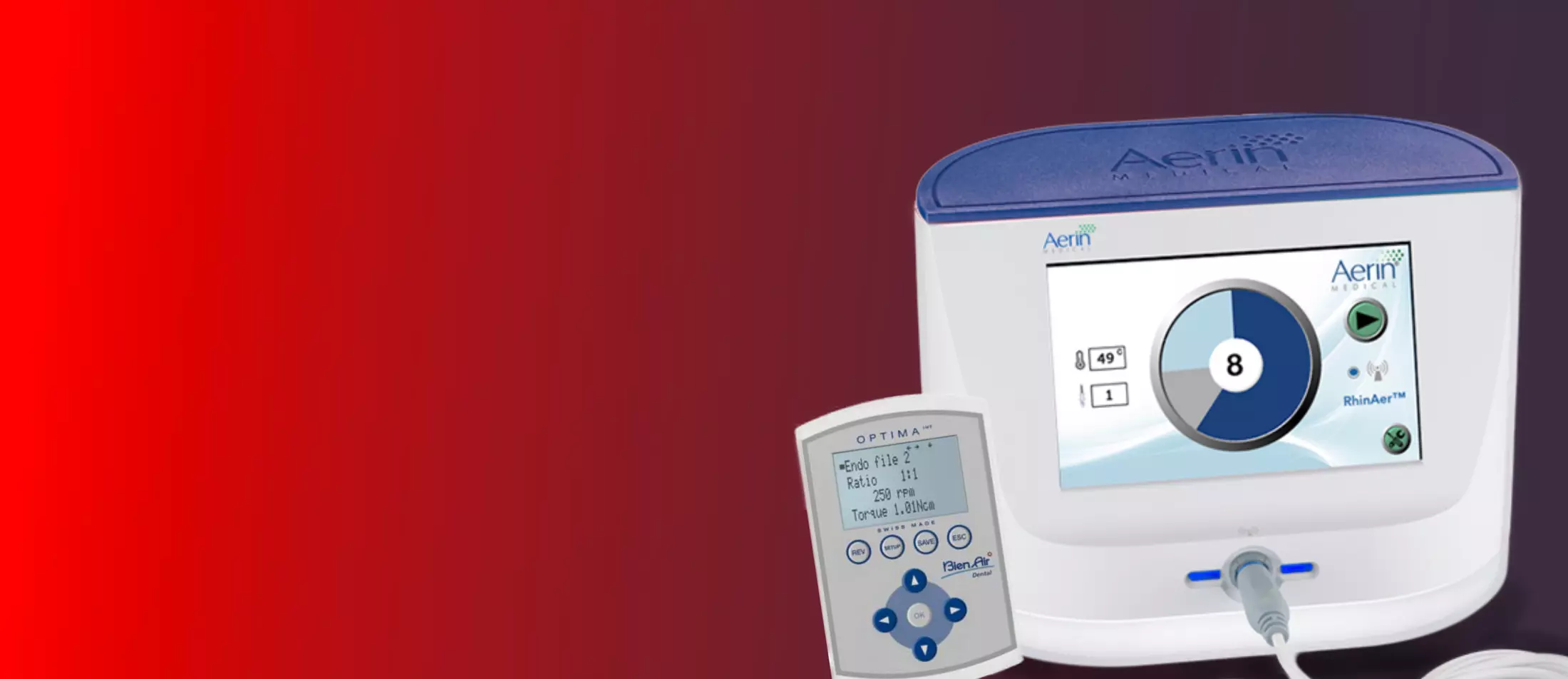

Our LCD modules are used in a wide range of applications—from industrial and automotive to medical and consumer electronics.
With robust, energy-efficient, and customizable displays, we meet the requirements of diverse industries and projects.
Making things easy
With a very broad product range of high-quality industrial displays, DISPLAY VISIONS (formerly ELECTRONIC ASSEMBLY) serves customers from a variety of industries, from process automation to mechanical engineering and information technology. In-house development and production allow DISPLAY VISIONS to cover a wide range of the display value chain. As a classic medium-sized company in the best sense of the word, the company can respond flexibly to a wide range of customer requirements.
Our Philosophy

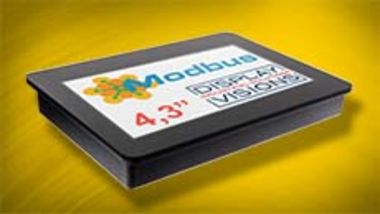

Modbus HMI from 2.8" to 10" incl. Touch
HMI Series
Brilliant HMI Displays for all PLC with Modbus: bright + contrasty for wall and panel mount.
For all common PLC like Siemens, Beckhoff, Rockwell, Arduino etc.

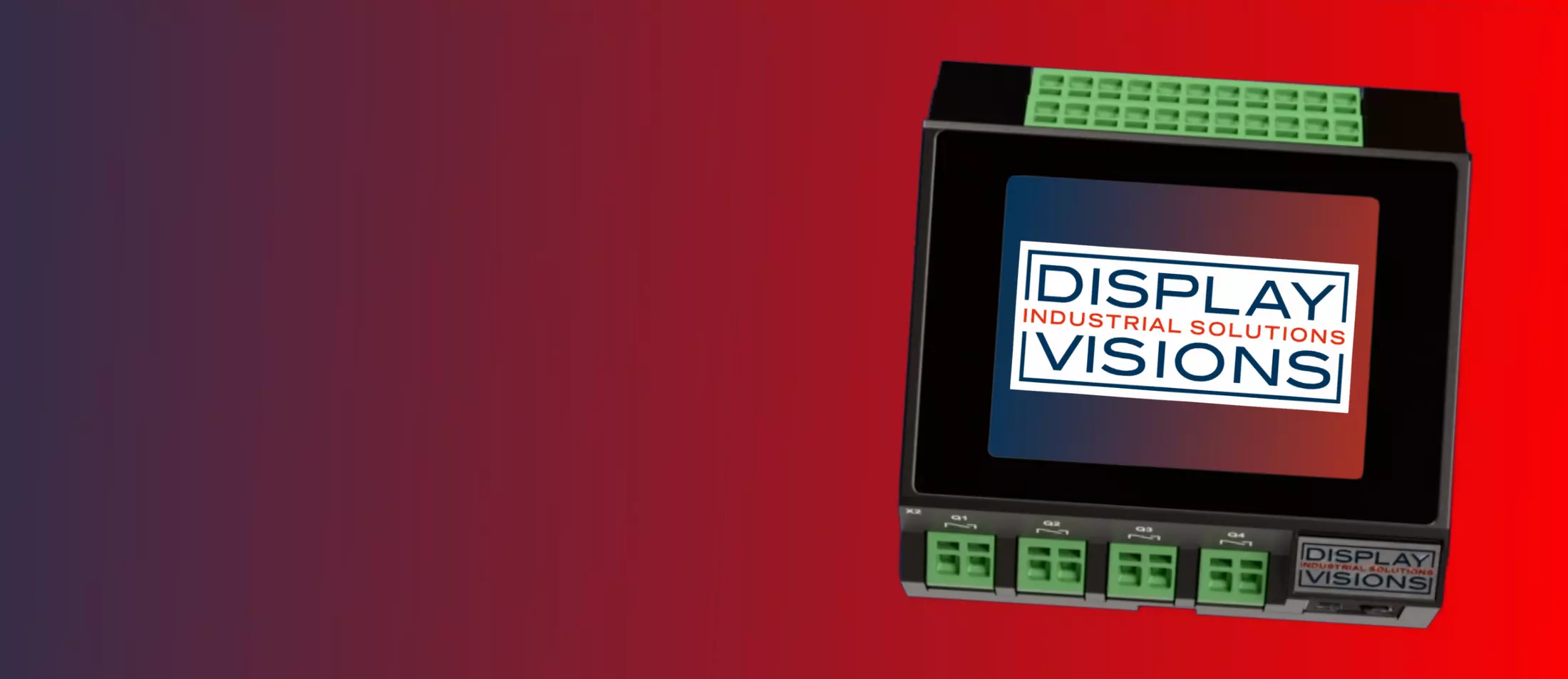

Compact PLC with 2.8" Touchdisplay
PLC Series
Small control unit with high-quality satellite displays show the condition of your system on site.
Settings can be done via touch panel.
![[Translate to Englisch:] Softwareerstellung und Anpassung](/fileadmin/_processed_/b/3/csm_Header_SoftwareService_230x130_a409b7b8f8.webp "[Translate to Englisch:] Softwareerstellung und Anpassung")
Software Service for HMI units
Professional project support from the idea to mass production including software customization and implementation of an application.

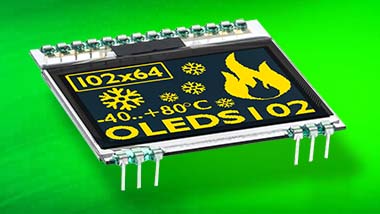

OLED Text and Graphic Displays
EA OLED
The new OLED technology offers a contrast ratio of at least 2000:1 thanks to a true black background and active technology. At the same time, the operating temperature range of -40 to +80°C is unrivalled.

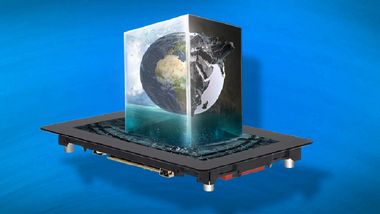

Small HMI for integration incl. touch and intelligence
True smartphone feeling: objects can be placed anywhere, they can be moved or deleted at every time. Stylish effects like fade in and out or blowing in are already integrated! 1.5" to 10".

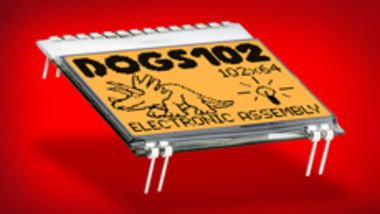

Chip-On-Glass Graphic and Text 3.3V, Lowpower, Printmount
EA DOG
This display series was specially developed for low-power handheld applications (even in sunlight). Simple connection to 3.3V systems via SPI interface.
Displays for Printmounting, 8-Bit Databus
EA DIP
DIP modules are extremely compact due to their design: there is no board protrusion and no holes for mounting. This is also not necessary, as they are soldered directly onto the circuit board.
Character 1x8 to 4x40 4-/8-Bit Interface
EA W-Series
Classic dot matrix LCDs with the HD44780 controller or compatible. Mounting holes and soldering eyelet strip. Available in blue/white or yellow/green.

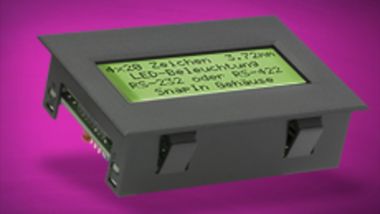

Displays with RS-232 interface
EA SER / EA PLUG
Our "Serials" are an LCD dot matrix series, ready for operation with control unit and front frame or in a snap-in housing. The PLUG series offers graphic displays with OLED technology.
DVM / Counter for mounting
Completely autonomously running function modules such as voltmeter, operating hours counter and event counter.

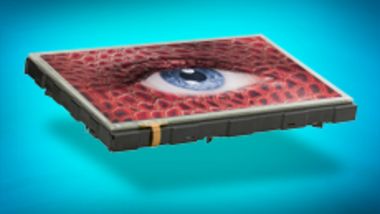

TFT Displays with SPI, I²C EA eDIPTFT series
As the first in the world we do provide TFT displays with 3.2", 4.3" and 7", which are immediately running and do provide from the first minute the full functionality.
USB / WiFi DataLogger
EA WLAN / EA SYLOG
DISPLAY VISIONS can supply a data logger to monitor and record ambient temperature, relative humidity and dew point. Drivers for current versions of Windows are provided.
First generation operating units
EA KIT
The EA KIT series graphics kits are fully assembled control and operating units from 2.4" to 5.9" with various built-in functions. Produced since 1996.
Professional Display Solutions
LCD, OLED and TFT displays, highest industrial quality and long availability
Video - Who is DISPLAY VISIONS
DISPLAY VISIONS (formerly: ELECTRONIC ASSEMBLY) is THE manufacturer for high-quality industrial displays. See here where and how these displays are developed and manufactured.
OLED displays, TFT displays (IPS), HMI with touch, LCD modules designed, developed and produced in Germany and other countries.
Fairs
Get to
know us personally
12. - 15. November 2024
electronica 2024 in Munich, Germany
11. - 13. March 2025
That was the embedded world in Nuremberg, Germany
